1
Engine displacement
250
2
Year
1993
3
Trim
250 4X4 - W938127
4
Parts Catalog
CARBURETOR 4X4 250 W938127 (4924042404040A)
5
Parts Diagram
Parts Catalog
OIL PUMP ASSEMBLY 4X4 250 W938127 (4924042404039A)
by

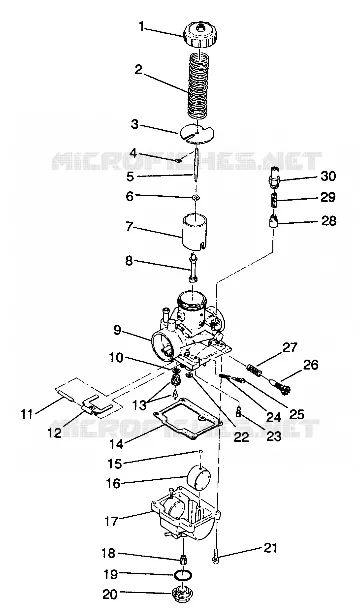

CARBURETOR 4X4 250 W938127 (4924042404040A)
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
1
TOP MIX CHAMBER (Incl. 3)
3130060
Not Available
2
SPRING THROTTLE
3130354
$62,99 Unit Price incl. VAT
3
PLATE THROTTLE
3130002
$47,24 Unit Price incl. VAT
4
E RING(10) Substituted by 3130508
3130003
3130508
$12,59 Unit Price incl. VAT
5
JET NEEDLE Substituted by 3130155
3130356
3130155
$52,49 Unit Price incl. VAT
6
WASHER
3130355
$13,64 Unit Price incl. VAT
7
VALVE THROTTLE (2.0)
3130420
Not Available
8
JET NEEDLE(0-4) 169 (169)
3130409
$83,99 Unit Price incl. VAT
9
CARBURETOR
3130424
Not Available
10
PACKING NEEDLE VALVE
3130017
$7,34 Unit Price incl. VAT
11
PIN FLOAT
3130361
$18,89 Unit Price incl. VAT
12
ARM FLOAT
3130018
$52,49 Unit Price incl. VAT
13
VALVE NEEDLE
3130360
$89,24 Unit Price incl. VAT
14
GASKET FLOAT CHAMBER
3130020
$31,49 Unit Price incl. VAT
15
CAP
3130237
$8,39 Unit Price incl. VAT
16
FLOAT ASM
3130021
$83,99 Unit Price incl. VAT
17
BOWL FLOAT (250)
3130441
$183,74 Unit Price incl. VAT
18
JET MAIN #145 Substituted by 3130112
3130351
Not Available
19
O-RING
3130239
Not Available
20
BOLT BANJO
3130321
$41,99 Unit Price incl. VAT
21
ASM. SCREW AND WASHER
3130025
$6,29 Unit Price incl. VAT
22
WASHER
3130014
$3,14 Unit Price incl. VAT
23
JET PILOT #40(10) (No. 40)
3130067
Not Available
24
SPRING AIR ADJUST
3130012
$18,89 Unit Price incl. VAT
25
SCREW AIR
3130011
$36,74 Unit Price incl. VAT
26
SCREW THROTTLE STOP
3130324
$36,74 Unit Price incl. VAT
27
SPRING THROTTLE ADJUSTER
3130010
$18,89 Unit Price incl. VAT
28
ASM. PLUNGER
3130328
$68,24 Unit Price incl. VAT
29
SPRING PLUNGER
3130006
3131764
$18,89 Unit Price incl. VAT
30
CAP PLUNGER
3130359
$31,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
