1
Engine displacement
250
2
Year
1993
3
Trim
250 4X4 - W938127
4
Parts Catalog
HEADLIGHT ASSEMBLY 4X4 250 W938127 (4924042404008A)
5
Parts Diagram
Parts Catalog
OIL TANK ASSEMBLY 4X4 250 W938127 (4924042404007A)
by
FRONT STRUT ASSEMBLY 4X4 250 W938127 (4924042404013A)

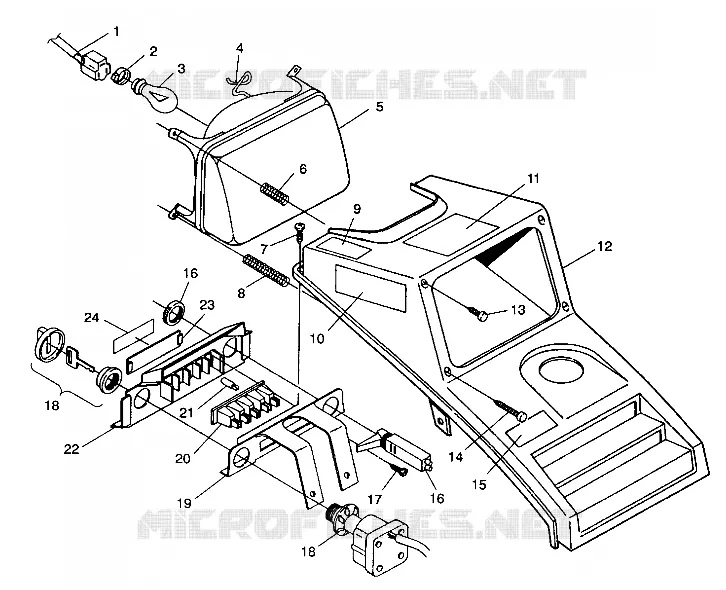

HEADLIGHT ASSEMBLY 4X4 250 W938127 (4924042404008A)
17
18
18
19
20
21
22
23
24
1
HARNESS HEADLIGHT
2460427
Not Available
2
COVER SOCKET H/L.
4032066
Not Available
3
BULB H/L
4030028
Not Available
4
RETAINER H/L BULB
4032063
Not Available
5
H/L ASM W/BULBSEAL
4032065
Not Available
6
SPRING-ADJ
4032002
Not Available
7
SCREW(10)
7512017
$9,44 Unit Price incl. VAT
8
SPRING ADJ. (Incl. Bulb Lens & Gasket)
4032041
Not Available
9
DECAL WARN#DEM.4#SW. Substituted by 7074935
7072737
Not Available
10
DECAL #250#
7073795
Not Available
11
DECAL CERTIF. ATV Substituted by 7075909
7073464
Not Available
12
COVER OIL-H/L BON.BLUE
5430973157
Not Available
13
SCREW ADJ.(10)
4032003
$9,44 Unit Price incl. VAT
14
SCREW ADJUST (ATV)(10)
4032042
Not Available
15
LABEL #U.S.A.#
7073024
Not Available
16
KIT CHOKE CONTROL INCL. ANCHOR FLIPPER PIN
2200188
$52,49 Unit Price incl. VAT
16
CABLE CHOKE
7080371
$178,49 Unit Price incl. VAT
17
Screw
7511862
Not Available
18
SWITCH IGNITION (See Footnote Below)
4110140
$257,24 Unit Price incl. VAT
19
BRKT IGN. PANEL
5220965067
Not Available
20
STRIP SOCKET
4032037
$43,56 Unit Price incl. VAT
21
BULB
4030042
4080872
$15,74 Unit Price incl. VAT
22
PANEL IGNITION
5430995
Not Available
23
LENS ASM PILOT LIGHT
2652049
Not Available
24
DECAL PANEL [No Longer Available]
7072685
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
