1
Engine displacement
250
2
Year
1993
3
Trim
250 4X4 - W938127
4
Parts Catalog

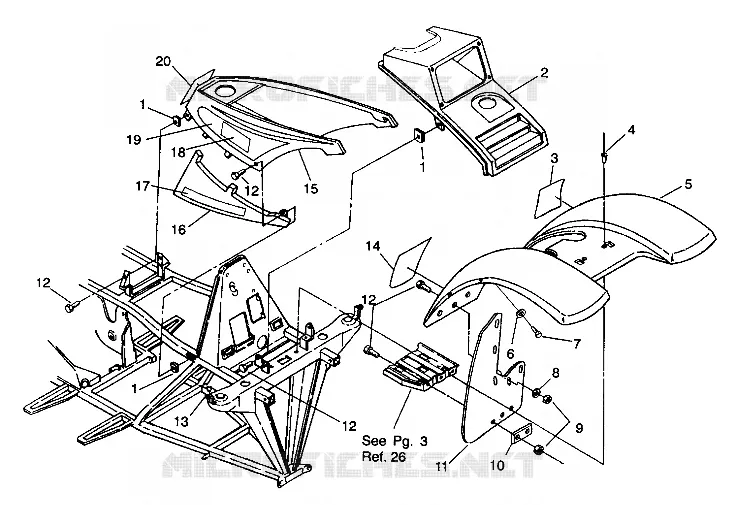

FRONT CAB ASSEMBLY 4X4 250 W938127 (4924042404001A)
5
Parts Diagram
Parts Catalog
by
REAR CAB ASSEMBLY 4X4 250 W938127 (4924042404002A)
FRONT CAB ASSEMBLY 4X4 250 W938127 (4924042404001A)
15
16
16
16
16
17
18
19
19
19
19
20
1
NUT SPEED(10)
7670060
$7,34 Unit Price incl. VAT
2
COVER OIL-H/L BON.BLUE
5430973157
Not Available
3
DECAL WARNING(CPSC) [No Longer Available]
7072693
Not Available
4
RIVET-POP3/16(.251-.375)AL-LFB
7621457
$2,09 Unit Price incl. VAT
5
CAB FR BLUE 4WHL (Incl. 3 14)
2631549157
Not Available
6
WASHER-.312 X .734 X .065-Z
7558302
$3,14 Unit Price incl. VAT
7
SCR-TFHFL-1/4-20X0.75 CHS ZY3
7512232
$2,09 Unit Price incl. VAT
8
WASHER-FL .281X.750X.062-Y
7555859
$2,09 Unit Price incl. VAT
9
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
10
BRKT LH MUD FLAP
5211131067
Not Available
10
BRKT RH MUD FLAP
5211020067
Not Available
11
MUDFLAP LH FRONT
5850086
Not Available
11
MUDFLAP RH FRONT
5850087
Not Available
12
BOLT BLACK(10)
7512282
$2,09 Unit Price incl. VAT
13
PLUG RUBBER-HOLE .5DIA(10) Substituted by 5411426
5410012
Not Available
14
DECAL(CPSC) WARNING DISC
7073147
Not Available
15
COVER FUELTANK BON.BLUE
5431197157
Not Available
16
COVER RH BON.BLUE SIDEPAN Substituted by 5433579-157
5430971157
Not Available
16
COVER LH BON.BLUE SIDEPAN Substituted by 5433382-157
5430970157
Not Available
17
DECAL #POLARIS#SIDEPANEL
7073817
Not Available
18
DECAL #4X4#
7073799
Not Available
19
DECAL RH TANK SIDE
7073798
Not Available
19
DECAL LH TANK SIDE
7073797
Not Available
20
DECAL(CPSC) AGE WARN. Substituted by 7074827
7072933
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
