1
Engine displacement
250
2
Year
1993
3
Trim
250 4X4 - W938127
4
Parts Catalog
RECOIL STARTER 4X4 250 W938127 (4924042404038A)
5
Parts Diagram
Parts Catalog
STARTING MOTOR 4X4 250 W938127 (4924042404037A)
by
ENGINE MOUNTING 4X4 250 W938127 (4924042404004A)

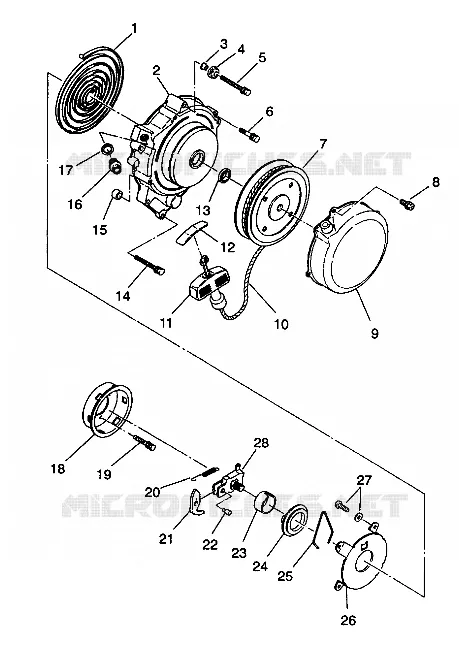

RECOIL STARTER 4X4 250 W938127 (4924042404038A)
19
20
21
22
23
24
25
26
27
28
1
SPRING SPIRAL
3083815
$73,07 Unit Price incl. VAT
2
CASE STARTER B UNIT
3083911
$435,74 Unit Price incl. VAT
2
STARTER RECOIL COMPL. (Incl. 1-18)
3083924
Not Available
3
COLLAR
3083732
Not Available
4
MOUNTING RUBBER
3083731
$7,97 Unit Price incl. VAT
5
BOLT & WASHER ASM.
3083926
Not Available
6
BOLT&WASHER ASM.
3082228
Not Available
7
REEL COMPL.
3083814
$178,49 Unit Price incl. VAT
8
BOLT FLANGE
3083826
Not Available
9
CASE STARTER COMPL.
3083914
Not Available
10
ROPE STARTER
2870621
$47,24 Unit Price incl. VAT
11
KNOB STARTER
3083659
Not Available
12
CAP KNOB
3083660
Not Available
13
GROMMET
3083817
Not Available
14
BOLT&WASHER
3083729
Not Available
15
BUSHING STARTER
3083669
Not Available
16
PLUG Substituted by 3086749
3083453
Not Available
17
GASKET
3082956
$9,44 Unit Price incl. VAT
18
PULLEY STARTING
3083915
Not Available
19
BOLT (10)
3081665
$6,29 Unit Price incl. VAT
20
SPRING RETURN
3083827
$18,57 Unit Price incl. VAT
21
RATCHET
3083819
Not Available
22
PIN RATCHET
3083820
Not Available
23
HOOK SPRING
3083818
Not Available
24
GUIDE RATCHET
3083821
Not Available
25
SPRING FRICTION
3083912
$41,04 Unit Price incl. VAT
26
CASE SPRING
3083925
Not Available
27
SCREW & WASHER
3084176
Not Available
28
GUIDE COMPL.
3083913
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
