1
Engine displacement
700
2
Year
1997
3
Trim
INTL HURRICANE - I974473
4
Parts Catalog
CARBURETOR HURRICANE B974473 AND INTL. HURRICANE I974473 (4941044104C003)
5
Parts Diagram
Parts Catalog
CRANKSHAFT PISTON HURRICANE B974473 AND INTL. HURRICANE I974473 (4941044104C002)
by
FUEL SYSTEM HURRICANE B974473 AND INTL. HURRICANE I974473 (4941044104A011)

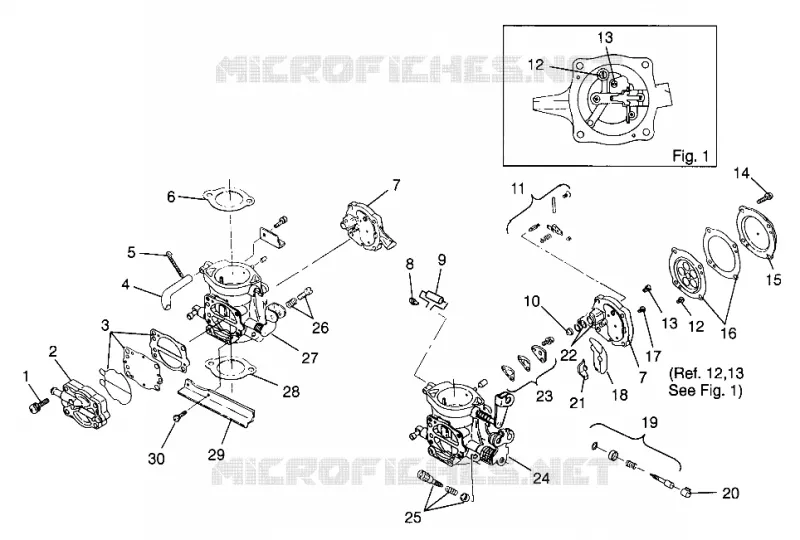

CARBURETOR HURRICANE B974473 AND INTL. HURRICANE I974473 (4941044104C003)
-
CARB.ASM COMPLETE
1253151
Not Available
-
KIT CARB.REBUILD PWC (Incl. 9 16 21 44)
2200910
Not Available
1
SCREW FUELPUMP
3050136
Not Available
2
KIT FUELPUMP BODY(KEIHIN)
2200687
Not Available
3
KIT GASKET(FUELPUMP)
2200686
Not Available
4
HOSE FUEL
3050143
Not Available
5
CLAMP HOSE S.S.(10)
7080476
$11,54 Unit Price incl. VAT
6
GASKET CARB. UPPER
5830062
$8,39 Unit Price incl. VAT
7
BLOCK JET KEIHIN
3050206
$99,95 Unit Price incl. VAT
8
JOINT CONNECTING
3050156
Not Available
9
TUBE RUBBER
3050157
Not Available
10
SCREEN FUELSTRAINER
3050144
Not Available
11
KIT NDLE VLVE 97DOM NOT SL 1050 (1 Per Carb)
2200733
Not Available
12
JET-MAIN 155 KEIHIN (Per Carb)
3050192
Not Available
13
JET-PILOT 70 KEIHIN
3050130
$7,97 Unit Price incl. VAT
14
SCREW JET BLOCK COVER
3050135
Not Available
15
COVER JET BLOCK
3050139
$73,07 Unit Price incl. VAT
16
KIT DIAPHRAGM-JET BLOCK (1 Per Carb)
2200730
Not Available
17
SCREW JET BLOCK
3050137
$5,45 Unit Price incl. VAT
18
O-RING JET BLOCK
3050147
Not Available
19
KIT IDLESCREW (KEIHIN) (1 Per Carb)
2200689
$33,06 Unit Price incl. VAT
20
CAP LIMITER
3050140
$9,23 Unit Price incl. VAT
21
COLLAR
3050138
Not Available
22
O-RING (VALVE SEAT)
3050148
Not Available
23
KIT CHECKVALVE MAIN(KEIHIN) (1 Per Carb)
2200688
$50,28 Unit Price incl. VAT
24
DESC NOT_AVAILABLE
3050208
Not Available
25
KIT IDLESTOP SCREW
2200731
$41,04 Unit Price incl. VAT
26
KIT SYNCH.SCREW
2200734
Not Available
27
DESC NOT_AVAILABLE
3050209
Not Available
28
GASKET CARB.
5830043
Not Available
29
PLATE CONNECTING
3050160
Not Available
30
SCREW CONNECT.PLATE
3050159
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
