1
Engine displacement
700
2
Year
1997
3
Trim
INTL HURRICANE - I974473
4
Parts Catalog
SEAT HURRICANE B974473 AND INTL. HURRICANE I974473 (4941044104A012)
5
Parts Diagram
Parts Catalog
FUEL SYSTEM HURRICANE B974473 AND INTL. HURRICANE I974473 (4941044104A011)
by
STEERING HURRICANE B974473 AND INTL. HURRICANE I974473 (4941044104A013)

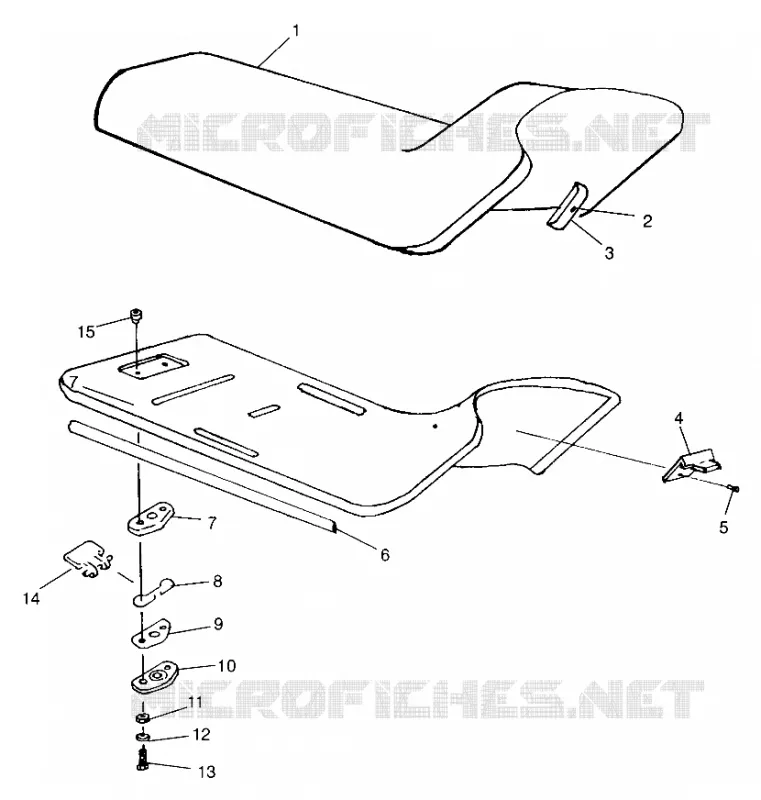

SEAT HURRICANE B974473 AND INTL. HURRICANE I974473 (4941044104A012)
1
SEAT ASM 1PASS SCR.YL PWC
2682192216
$435,74 Unit Price incl. VAT
1
COVER SEAT SCRM.YLW.
2681920216
Not Available
2
SCREW SS.
7517241
$2,82 Unit Price incl. VAT
3
PROTECTOR RH SEAT SCRM.YELLOW
5432428216
Not Available
3
PROTECTOR LH SEAT SCRM.YELLOW
5432427216
Not Available
4
CLIP SEAT RETAINER
5241311
Not Available
5
RIVET(50)
7661834
Not Available
6
SEAL SEAT (SLR)
5521393
$56,90 Unit Price incl. VAT
7
PLATE TOP SEATBASE LATCH
5431359
Not Available
8
SPRING SEATBASE LATCH
7042036
Not Available
9
PLATE SEATBASE LATCH
5211314
$7,97 Unit Price incl. VAT
10
PLATE LATCH BOT.SEAT BASE
5431357
$9,23 Unit Price incl. VAT
11
WASHER FLAT S.S.(10)
7555839
$0,93 Unit Price incl. VAT
12
WASHER LOCK S.S.(10)
7555838
Not Available
13
BOLT SS.(10)
7515123
$2,82 Unit Price incl. VAT
14
HANDLE SEAT
5431358
Not Available
15
NUT TEE(10)
7542137
$1,77 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
