1
Engine displacement
700
2
Year
1997
3
Trim
INTL HURRICANE - I974473
4
Parts Catalog

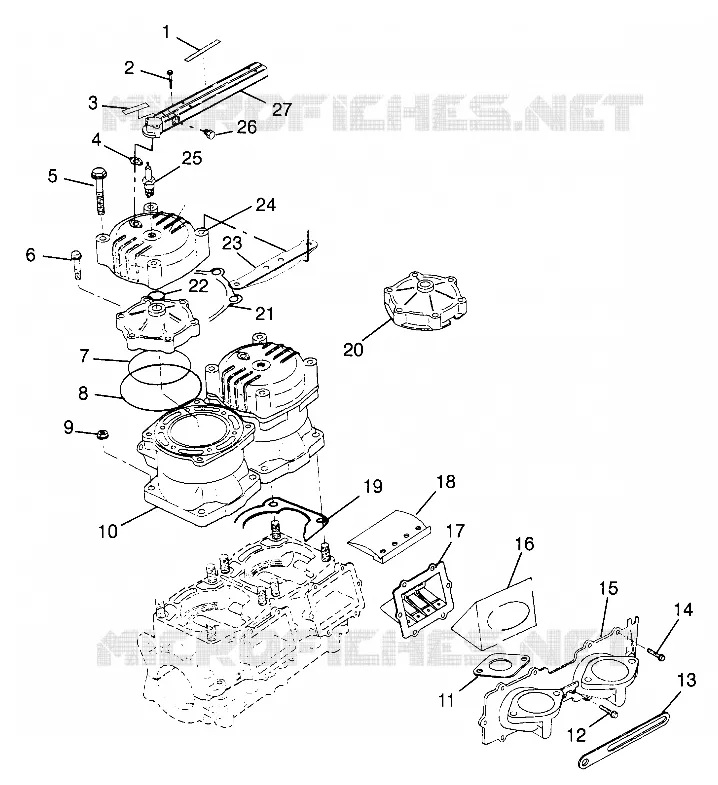

CYLINDER MANIFOLD HURRICANE B974473 AND INTL. HURRICANE I974473 (4941044104C001)
5
Parts Diagram
Parts Catalog
CRANKCASE HURRICANE B974473 AND INTL. HURRICANE I974473 (4941044104B014)
by
CRANKSHAFT PISTON HURRICANE B974473 AND INTL. HURRICANE I974473 (4941044104C002)
CYLINDER MANIFOLD HURRICANE B974473 AND INTL. HURRICANE I974473 (4941044104C001)
-
KIT GASKET SET COMP.
2200680
$115,49 Unit Price incl. VAT
-
KIT GASKET TOP END
2200673
Not Available
1
DECAL WARNING
7075383
Not Available
2
BOLT(10)
7516806
Not Available
3
DECAL SPARKPLUG REC.
7077026
$4,82 Unit Price incl. VAT
4
GASKET WATER MANIF.
5830061
Not Available
5
BOLT(10)
7516722
$15,42 Unit Price incl. VAT
6
SCREW (10) Substituted by 7517352
7517251
Not Available
7
O-RING-3.489X3.629X.07 HI-TMP
5410932
$36,74 Unit Price incl. VAT
8
O-RING
5410931
5412232
$11,54 Unit Price incl. VAT
9
NUT-M10X1.25-HX/FL
7547013
$3,14 Unit Price incl. VAT
10
CYLINDER 81MM PWC Substituted by 3021018
3021009
Not Available
11
GASKET CARB.
5830043
Not Available
12
BOLT(10)
7516814
$3,87 Unit Price incl. VAT
13
RETAINER SS.
7080654
$29,39 Unit Price incl. VAT
14
BOLT(10)
7516807
Not Available
15
MANIFOLD INTAKE
5630529
Not Available
16
STUFFER REED BLOCK Substituted by 5433151
5432104
Not Available
17
REEDVALVE ASM. Substituted by 1201689
1201592
Not Available
18
STUFFER
5411251
Not Available
19
GASKET CYL.BASE
5830123
$13,64 Unit Price incl. VAT
20
HEAD CYL 81MM PWC
3022050
$43,56 Unit Price incl. VAT
21
RING HEAD 81MM-SS
5241944
$85,88 Unit Price incl. VAT
22
O-RING(10)
5410917
$1,56 Unit Price incl. VAT
23
BRKT HEAD TWIN FIRE RED
5241768093
Not Available
24
COVER HEAD RED BIG BORE
5630527093
Not Available
25
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
26
PLUG PIPE(10)
7051527
$10,70 Unit Price incl. VAT
27
MANIFOLD OUTLET FIRE RED Substituted by 5630826-093 (For WC70DCSP02 Engine)
5630622093
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
