1
Engine displacement
700
2
Year
1997
3
Trim
INTL HURRICANE - I974473
4
Parts Catalog

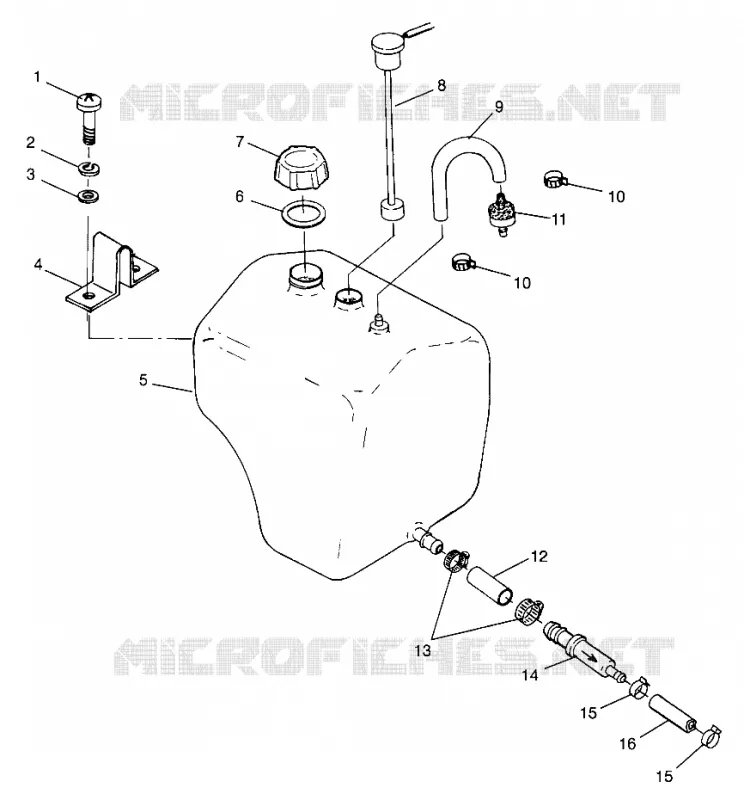

OIL TANK HURRICANE B974473 AND INTL. HURRICANE I974473 (4941044104B001)
5
Parts Diagram
Parts Catalog
by
ENGINE MOUNTING HURRICANE B974473 AND INTL. HURRICANE I974473 (4941044104B002)
OIL TANK HURRICANE B974473 AND INTL. HURRICANE I974473 (4941044104B001)
1
SCREW S.S.(10)
7515143
$0,83 Unit Price incl. VAT
2
WASHER LOCK
7555961
Not Available
3
WASHER(10)
7555836
$6,29 Unit Price incl. VAT
4
BRKT RETAIN.TANK
5242074
Not Available
5
TANK OIL Substituted by 2511264
5432186
Not Available
6
GASKET OIL CAP
5810141
$4,19 Unit Price incl. VAT
7
CAP OIL TANK
5430779
$31,49 Unit Price incl. VAT
8
SENDER ASM OIL LEVEL(SLR )
2410059
Not Available
9
HOSE OIL VENT FORMED
5411152
$11,96 Unit Price incl. VAT
10
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
11
VALVE VACUUM CHECK
7052118
Not Available
12
DESC NOT_AVAILABLE
845005905
Not Available
13
CLAMP-HOSE .875-SS
7080474
$13,64 Unit Price incl. VAT
14
FILTER OIL
2530015
Not Available
15
CLAMP-HOSE (LARGE GREEN)
7080307
$1,56 Unit Price incl. VAT
16
DESC NOT_AVAILABLE
845000333
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
