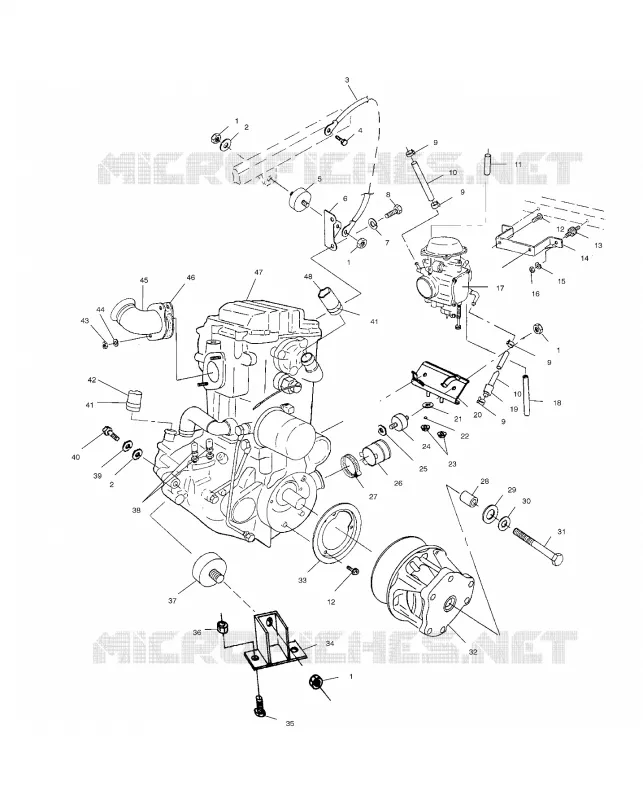

Parts Diagram
Parts Catalog
COOLING SYSTEM
by
FRONT STRUT
ENGINE MOUNTING
1
1
1
1
2
2
3
4
5
6
7
8
9
9
9
9
10
10
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
17
17
34
35
36
37
38
39
40
41
41
17
17
17
45
17
47
17
1
1
2
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
21
22
23
24
25
26
27
28
29
30
31
17
17
17
34
35
36
37
38
38
39
39
40
40
1
NUT FLANGE LOCK
7547108
$9,44 Unit Price incl. VAT
2
WASHER-.390X1.12X.060 FL-Y
7555823
$7,34 Unit Price incl. VAT
3
CABLE GND-ENGINE
4010132
Not Available
4
SCR-1/4-20X5/8 TAP/R-Y
7517386
$2,09 Unit Price incl. VAT
5
Mount Rubber
3110044
3024012
$83,99 Unit Price incl. VAT
6
BRKT ENG.MT TOP BLK
5242674067
Not Available
7
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
8
Bolt
7512315
$9,44 Unit Price incl. VAT
9
HOSE CLAMP RED
7080003
$2,09 Unit Price incl. VAT
10
FUEL LINE-1/4 ID (SVC) 600 CM [BULK]
8450040600
$136,49 Unit Price incl. VAT
11
HOSE [BULK SVC]
84500031525
$136,49 Unit Price incl. VAT
12
SCREW & WASHER(10)
3084205
$7,34 Unit Price incl. VAT
13
MOUNT RUBBER
3110032
$15,74 Unit Price incl. VAT
14
BRKT CARB.MOUNT BLK.
5242258067
Not Available
15
WASHER(10)
7552605
$9,44 Unit Price incl. VAT
16
NUT-1/4-20 HEX-Y
7542105
$7,34 Unit Price incl. VAT
17
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
18
HOSE-POLY CLEAR 3/16 OD 1/8 ID
8360009600
$83,99 Unit Price incl. VAT
19
Sheath Foil Laminated
845008058
$120,74 Unit Price incl. VAT
20
MOUNT ENGINE REAR 500 BLK
1013222067
$38,42 Unit Price incl. VAT
21
SPACER-1.00X.38X.36
5132775
$24,45 Unit Price incl. VAT
22
O-RING-.312X.432X.06(10)
5412005
$2,72 Unit Price incl. VAT
23
Nut Flange Lock [To 9/01/03]
7547089
$9,44 Unit Price incl. VAT
24
Mount Rubber
3110046
Not Available
25
WASHER FLAT
7555815
$7,34 Unit Price incl. VAT
26
BOOT CLUTCH INTAKE
5410421
$20,99 Unit Price incl. VAT
27
CLAMP-NARROW BAND 1.38/2.38
7080511
$9,44 Unit Price incl. VAT
28
BUSHING-.437 X.770 X.50
5430261
$13,64 Unit Price incl. VAT
29
WASHER-.440X1.25X.190 FL-Y
5210748
$7,34 Unit Price incl. VAT
30
WASHER-7/16-INT LK-(1222)-Z [ACCESSORY]
7575202
$9,44 Unit Price incl. VAT
31
BOLT(10) *
7512566
$52,49 Unit Price incl. VAT
32
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
33
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
34
Mount Engine
1040688067
Not Available
35
SCR-5/16-18X3/4 HX/FLG GR5-Y
7515398
$4,19 Unit Price incl. VAT
36
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
37
Mount Motor
3110067
Not Available
38
CLAMP-HOSE .875-SS
7080474
$13,64 Unit Price incl. VAT
39
WASHER-SPRING-LOCK
7552603
$1,56 Unit Price incl. VAT
40
BOLT
7515438
$9,44 Unit Price incl. VAT
41
CLAMP HOSE 1.25 WORM DRIVE
7080696
$10,49 Unit Price incl. VAT
42
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
43
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
44
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
45
Manifold Black
1261171029
$283,49 Unit Price incl. VAT
46
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
47
ENG.EH50PLE-04 (See Footnote)
3085822
Not Available
48
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
