1
Engine displacement
500
2
Year
2003
3
Trim
SCRAMBLER 500 4X4 - A03BG50AA
4
Parts Catalog

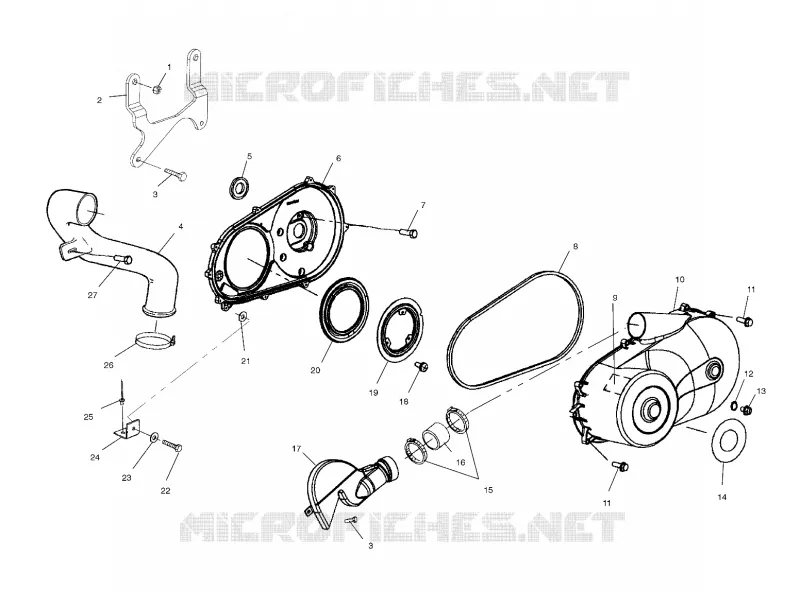

CLUTCH COVER
5
Parts Diagram
Parts Catalog
AIR BOX
by
ELECTRICAL/TAILLIGHT
CLUTCH COVER
1
2
3
3
4
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
1
2
3
4
4
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
6
7
8
9
9
9
10
11
12
12
13
13
14
14
14
14
15
16
16
16
17
18
18
18
19
19
19
20
20
21
22
1
1
2
2
3
4
4
5
5
6
7
7
7
8
9
9
10
10
11
11
11
11
12
13
14
15
16
17
18
18
19
20
21
22
23
24
25
25
26
26
27
1
Nutsert
7547067
$11,01 Unit Price incl. VAT
2
Bracket Clutch Cover
5242208067
Not Available
3
SCR-1/4-20X5/8 TAP/R-Y
7517386
$2,09 Unit Price incl. VAT
4
Duct Inlet Down Tube
5432698
Not Available
5
Seal Cover
5411553
$41,99 Unit Price incl. VAT
6
Kit Inner Clutch Cover Service [Incl. Inner Cover Seals Screws]
2201851
$246,74 Unit Price incl. VAT
7
BOLT/RBR WASHER 1/4-20X1 ASM.(10) (If built after 4/03/00)
7517860
Not Available
8
Seal Cover Clutch Outer
5521578
5526450
$78,74 Unit Price incl. VAT
9
DECAL WARNING CLUTCH CVR (If built after 10/04/99)
7078689
Not Available
10
Asm. Clutch Cover Outer [Incl. 16 17]
2633262
2633926
$346,49 Unit Price incl. VAT
11
SCR-#14X1-1/4 LG HI/LO/TAPER-M
7512094
$3,14 Unit Price incl. VAT
12
O RING-.364X.504X.07
5410542
5411432
$9,44 Unit Price incl. VAT
13
PLUG-DRAIN CLUTCH COVER
5434264
$10,49 Unit Price incl. VAT
14
DECAL AUTO.TRANSMISSION
7074782
Not Available
15
CABLE-TIE 10-102MM WEATH.-RES.
7080761
$5,24 Unit Price incl. VAT
16
Boot Duct Hi Flow
5411489
Not Available
17
DUCT-CLUTCH OUT HI-FLOW 13.6 (If built after 10/15/00)
5434160
Not Available
18
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
19
BRACKET CLUTCH SEAL
5242046067
$68,24 Unit Price incl. VAT
20
SEAL COVER CASE
5410575
$78,74 Unit Price incl. VAT
21
WASHER NYLON
7555932
$4,19 Unit Price incl. VAT
22
SCR-#14X1.0 LG HI/LO/TAPER-M
7512098
$3,14 Unit Price incl. VAT
23
WASHER-.28 X .81 X .06 ST-M
7555935
$4,19 Unit Price incl. VAT
24
Bracket Clutch Cover
5242693067
Not Available
25
RIVET-3/16-.090-.290
7661637
$2,09 Unit Price incl. VAT
26
CLAMP-NARROW BAND 1.38/2.38
7080511
$9,44 Unit Price incl. VAT
27
SCR-1/4-20X3/4-TR/TX/TAP-M
7517916
$11,54 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
