1
Engine displacement
500
2
Year
2003
3
Trim
SCRAMBLER 500 4X4 - A03BG50AA
4
Parts Catalog
TOOL KIT
5

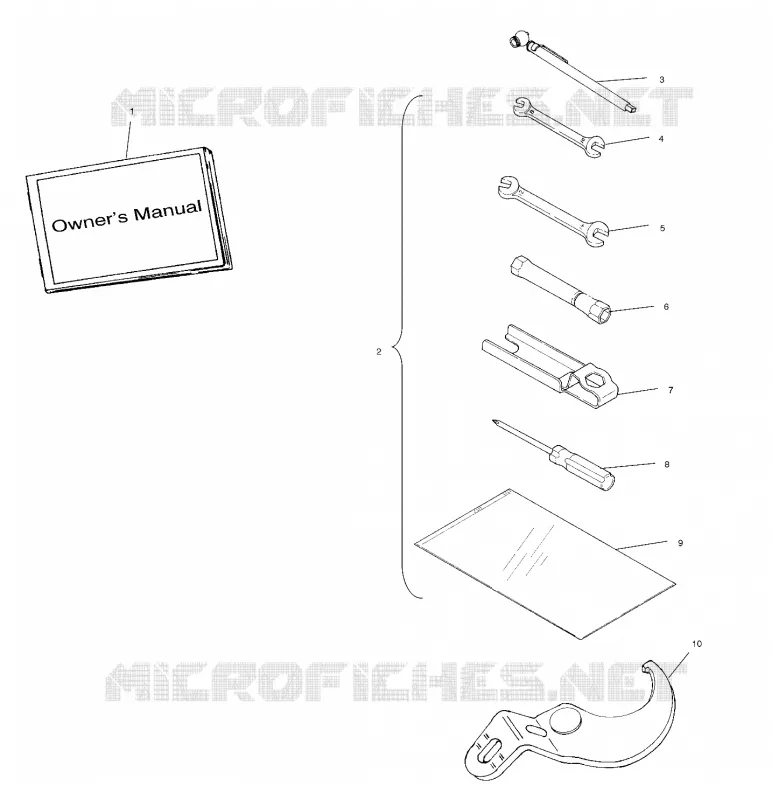

Parts Diagram
Parts Catalog
CYLINDER
by
DRIVE CLUTCH
TOOL KIT
1
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
9
10
10
10
10
10
10
10
10
10
10
1
Owner#s Manual #03 ATV
9917492
$37,16 Unit Price incl. VAT
1
Supplement Owner#s Manual #03 Scrambler 500
9917510
Not Available
2
Asm. Tool Kit [Incl. 6-11]
3085544
Not Available
3
GAUGE-TIRE PRESSURE
2870725
$15,74 Unit Price incl. VAT
4
WRENCH OPEN 8-10MM.
3085001
Not Available
5
WRENCH OPEN 12-14MM.
3085002
Not Available
6
Wrench Box
3085568
Not Available
7
HANDLE WRENCH Substituted by 3084984
3085569
$83,99 Unit Price incl. VAT
8
SCREWDRIVER PHILLIPS [No Longer Available]
3082657
Not Available
9
POUCH-TOOL KIT 9#
2682572
$47,24 Unit Price incl. VAT
10
WRENCH SPANNER
5211627
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
