1
Engine displacement
500
2
Year
2003
3
Trim
SCRAMBLER 500 4X4 - A03BG50AA
4
Parts Catalog
GEAR SELECTOR
5

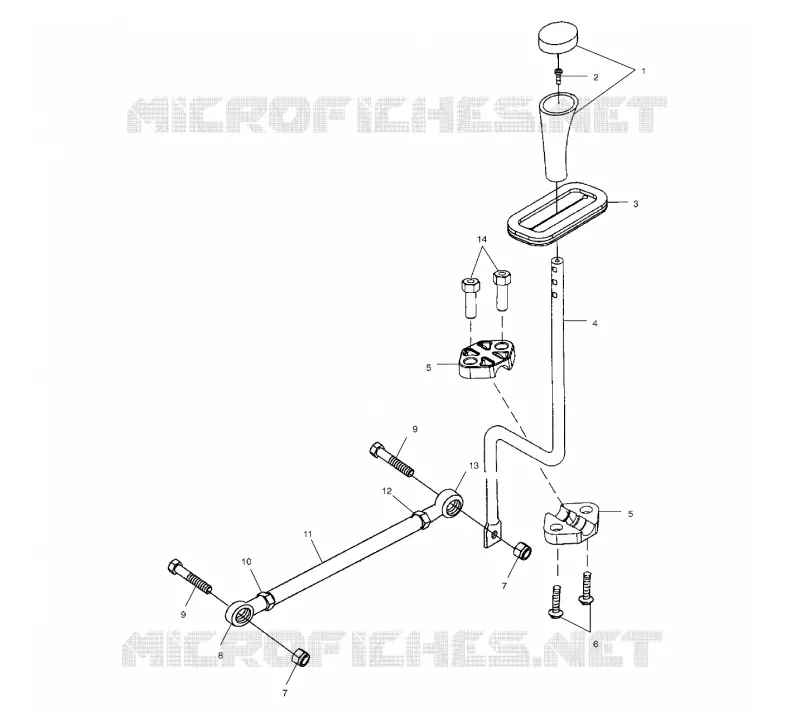

Parts Diagram
Parts Catalog
FRONT BRAKE
by
FOX SHOCK-GAS-RESERVOIR
GEAR SELECTOR
1
1
2
3
4
5
5
6
7
7
8
9
9
10
11
12
13
14
1
Cover Shift Knob
5411006
3233198
$68,24 Unit Price incl. VAT
1
KNOB GEAR SILECTOR SHIFT
5411007
3233198
$68,24 Unit Price incl. VAT
2
SCR-#10-24X1/2PH/TORX-TRIRD-Y
7512024
$9,44 Unit Price incl. VAT
3
GROMMET HR SHIFTER
5411008
Not Available
4
GEAR SEL.T BLAZR BLK.
1012810067
Not Available
5
MOUNT-GEAR SELECTOR HI/REV
5433103
Not Available
6
SCR-HXFL-1/4-20X0.5 GR5.1 ZY3
7515133
$7,34 Unit Price incl. VAT
7
Nut FLEXLOC
7546707
7546703
$2,09 Unit Price incl. VAT
8
Rod End LH [If built after 8/22/01]
7061101
Not Available
9
Bolt (If built after 8/22/01)
7518001
$4,19 Unit Price incl. VAT
10
NUT JAM LH
7547198
$10,49 Unit Price incl. VAT
11
Asm. Shift Linkage (If built after 8/22/01)
1821206
Not Available
12
NUT JAM [RH]
7547083
$10,49 Unit Price incl. VAT
13
Rod End RH [If built after 8/22/01]
7061102
Not Available
14
SPACER-HEX SHIFTER HI/REV
5131976
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
