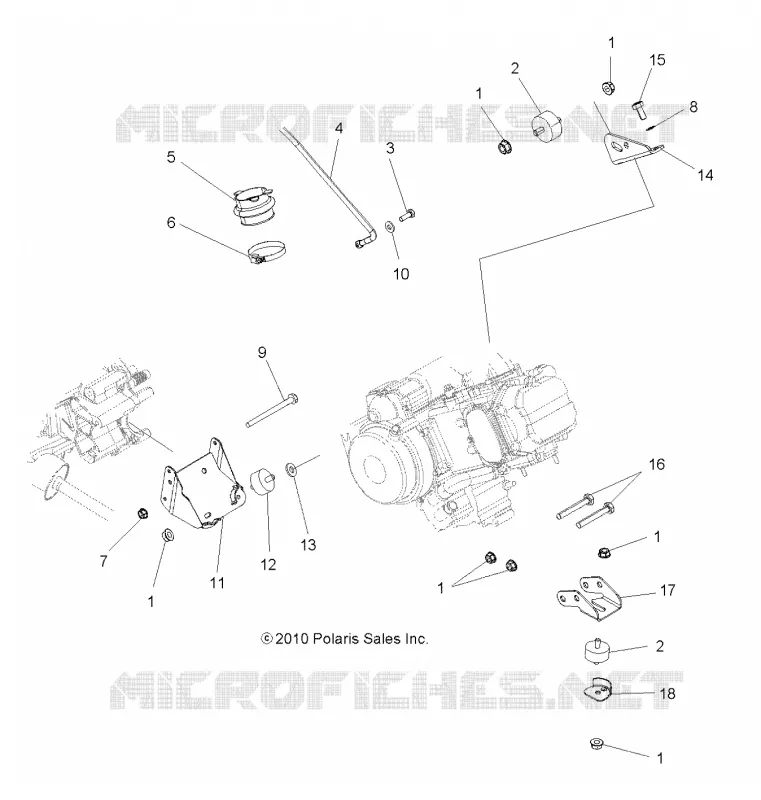

ENGINE, MOUNTING FOR SPORTSMAN TOURING 500 HO - A12DH50AX/AZ FROM 2012

ENGINE, MOUNTING

1

NUT FLANGE LOCK

7547108

$9,44 Unit Price incl. VAT

2

ISOLATOR

3022071

$83,99 Unit Price incl. VAT

3

ASM. BOLT AND WASHER

3082038

$7,34 Unit Price incl. VAT

4

CABLE-BLK(FRAME/ENGINE)

4011546

$27,29 Unit Price incl. VAT

5

Boot Clutch Intake (If built after 8/04/03)

5412487

Not Available

6

CLAMP-NARROW BAND 1.38/2.38

7080511

$9,44 Unit Price incl. VAT

7

NUT-5/16-18 HX FLG NL-Y [INTL]

7542343

$9,44 Unit Price incl. VAT

8

WASHER-5/16 SPRING LK-MED-Y

7552901

$2,09 Unit Price incl. VAT

9

SCR-5/16-18X7.5 HXCP GR Y

7518648

$13,64 Unit Price incl. VAT

10

WASHER [INTL]

7558301

$2,09 Unit Price incl. VAT

11

Mount Rear Black

1015648329

$79,47 Unit Price incl. VAT

12

ISOLATOR

3022076

Not Available

13

WASHER FLAT

7555815

$7,34 Unit Price incl. VAT

14

Mount Engine Top

5241453

Not Available

15

Bolt

7512315

$9,44 Unit Price incl. VAT

16

Screw

7518415

$9,44 Unit Price incl. VAT

17

Mount Engine Front

5250326

$68,24 Unit Price incl. VAT

18

Bracket Torque Stop

5245043

$31,49 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
