REAR SUSPENSION FOR SPORTSMAN TOURING 500 HO - A12DH50AX/AZ FROM 2012

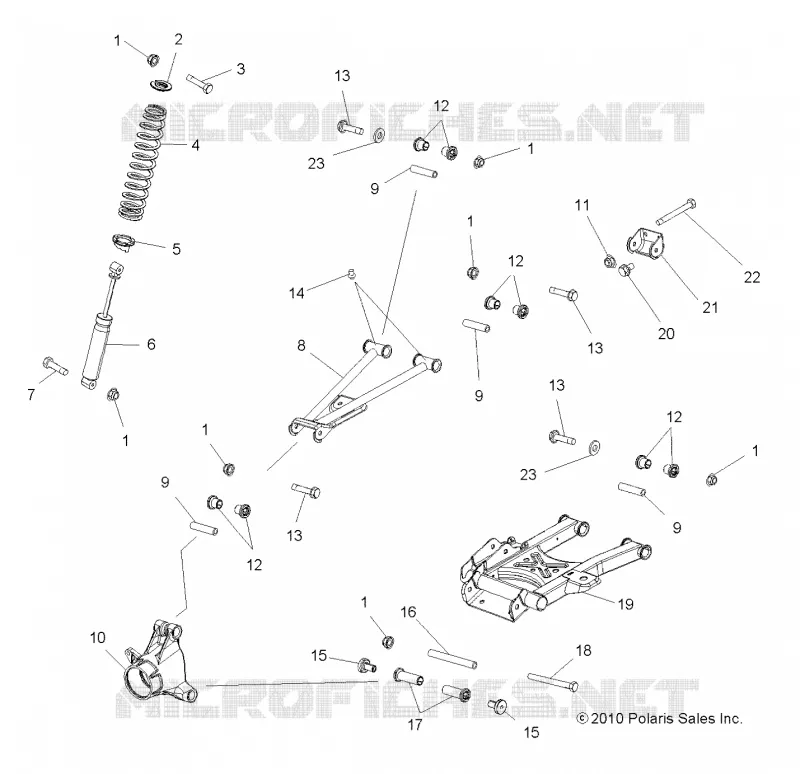

REAR SUSPENSION

1

NUT-3/8-24(NYLOK)-Y

7542439

$2,09 Unit Price incl. VAT

2

RETAINER-SPRING STEEL

5251753

$19,94 Unit Price incl. VAT

3

SCREW

7515415

$2,09 Unit Price incl. VAT

4

Spring Compression Rear Black

7043769067

$202,64 Unit Price incl. VAT

5

CAM-ADJUSTING SPRING STEEL

5253768

$68,24 Unit Price incl. VAT

6

Shock Rear

7043374

$173,24 Unit Price incl. VAT

7

SCREW

7515415

$2,09 Unit Price incl. VAT

8

Arm Control Upper RH Black

1015849067

Not Available

8

Arm Control Upper LH Black

1015848067

Not Available

9

Shaft A-Arm Short

5134882

$62,99 Unit Price incl. VAT

10

Carrier Bearing RH

5134985

$175,34 Unit Price incl. VAT

10

Carrier Bearing LH

5134984

$175,34 Unit Price incl. VAT

11

NUT-FLANGED 3/8-16 NYLON

7547180

$4,19 Unit Price incl. VAT

12

Bushing Control Arm

5436832

$4,19 Unit Price incl. VAT

13

SCR-3/8-24X3 3/4 HX CP GR5-Y

7515472

$4,19 Unit Price incl. VAT

14

FITTING LUBRICATION

7080433

$2,09 Unit Price incl. VAT

15

BUSHING PIVOT WEAR

5136102

$19,94 Unit Price incl. VAT

16

Tube Pivot

5136101

$52,49 Unit Price incl. VAT

17

Bushing Control Arm

5437229

$11,54 Unit Price incl. VAT

18

Bolt

7518522

$13,64 Unit Price incl. VAT

19

Control Lower RH Black

1016023067

$750,74 Unit Price incl. VAT

19

Control Lower LH Black

1016022067

$750,74 Unit Price incl. VAT

20

SCR-3/8-16X3/4 HX FLNG-GR5-Y

7517632

$10,49 Unit Price incl. VAT

21

Bracket Control-Arm Pivot

5249289

Not Available

22

BOLT-3/8-16X7 HX FLNG GR5-Y

7518365

$13,64 Unit Price incl. VAT

23

Washer .105

7555832

$4,19 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
