COOLING SYSTEM FOR SPORTSMAN TOURING 500 HO - A12DH50AX/AZ FROM 2012

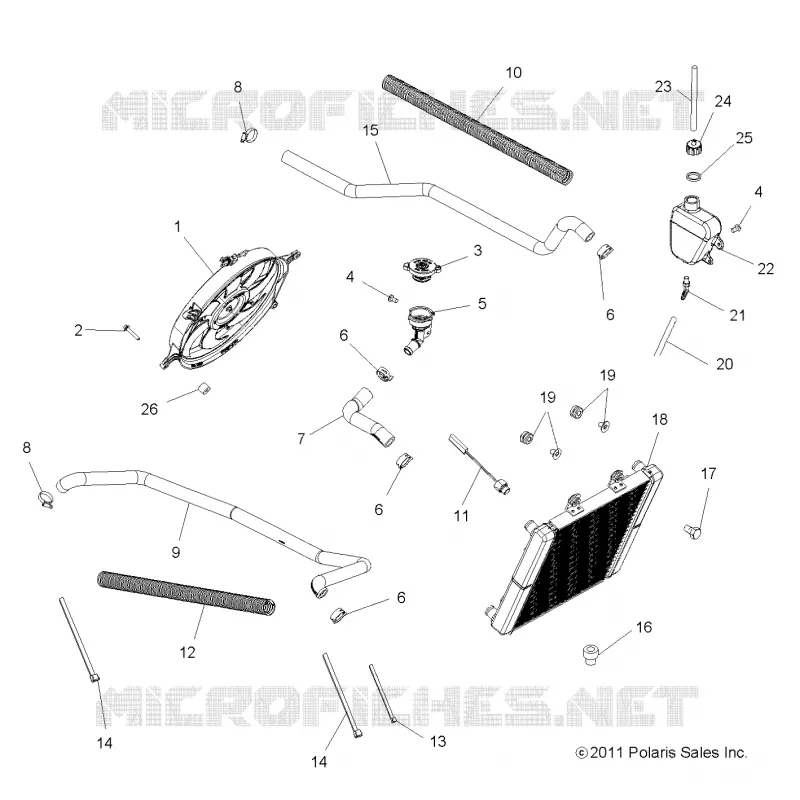

COOLING SYSTEM

1

ASM-FAN AND MOTOR TRIPAC SGL

2411330

$303,96 Unit Price incl. VAT

2

SCR-M6X1.0X35 HX/FL-Y/D

7516827

$12,59 Unit Price incl. VAT

3

CAP PRESSURE

1240508

$89,24 Unit Price incl. VAT

4

SCR-10-24X1/2 PHTXTRIRD SEMS-Y

7512084

$2,09 Unit Price incl. VAT

5

FILLER NECK RADIATOR

5412402

$52,49 Unit Price incl. VAT

6

SPRINGBAND-CLAMP 27/12 GREEN

7080841

$13,64 Unit Price incl. VAT

7

HOSE FILLER NECK

5414228

$29,39 Unit Price incl. VAT

8

CLAMP HOSE 1.25 WORM DRIVE

7080696

$10,49 Unit Price incl. VAT

9

Hose Radiator Upper

5414225

Not Available

10

Conduit Flex [Built 2/03/09 and After]

552179351

$19,94 Unit Price incl. VAT

11

Sensor Thermal

4010808

$173,24 Unit Price incl. VAT

12

Conduit Flex [Built 2/03/09 and After]

552179351

$19,94 Unit Price incl. VAT

13

CABLE-TIE DIA12-50MM WTHR-RES.

7080138

$5,24 Unit Price incl. VAT

14

CABLE-TIE 25-76MM WEATH.-RES.

7080492

$5,24 Unit Price incl. VAT

15

Hose Radiator Upper

5414225

Not Available

16

BUSHING-MOUNT LOWER RADIATOR

5410584

$10,49 Unit Price incl. VAT

17

SCR-1/4-20X1 HX/WH/TAP/R GR5-Y

7515179

$4,19 Unit Price incl. VAT

18

Asm. Radiator Carb [Does Not incl. 4010808]

1240522

$834,74 Unit Price incl. VAT

19

ASM. GROMMET AND INSERT

5413155

$7,34 Unit Price incl. VAT

20

HOSE [BULK SVC]

84500031525

$136,49 Unit Price incl. VAT

21

FITTING-1/8-27 BARBED 90 DEG

7052065

$13,64 Unit Price incl. VAT

22

TANK-SURGE

5436936

$152,24 Unit Price incl. VAT

23

HOSE-POLY CLEAR 3/16 OD 1/8 ID

8360009600

$83,99 Unit Price incl. VAT

24

CAP OVER FLOW BOTTLE W/FITTING

5437635

$9,44 Unit Price incl. VAT

25

GASKET-OVERFLOW CAP

5810279

$4,19 Unit Price incl. VAT

26

SPACER-6.6IDX19ODX15 NYL BLK

5137361

$10,49 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
