STEERING POST FOR SPORTSMAN TOURING 500 HO - A12DH50AX/AZ FROM 2012

VALVES AND CAMSHAFT

SUSPENSION, A-ARM AND STRUT MOUNTING

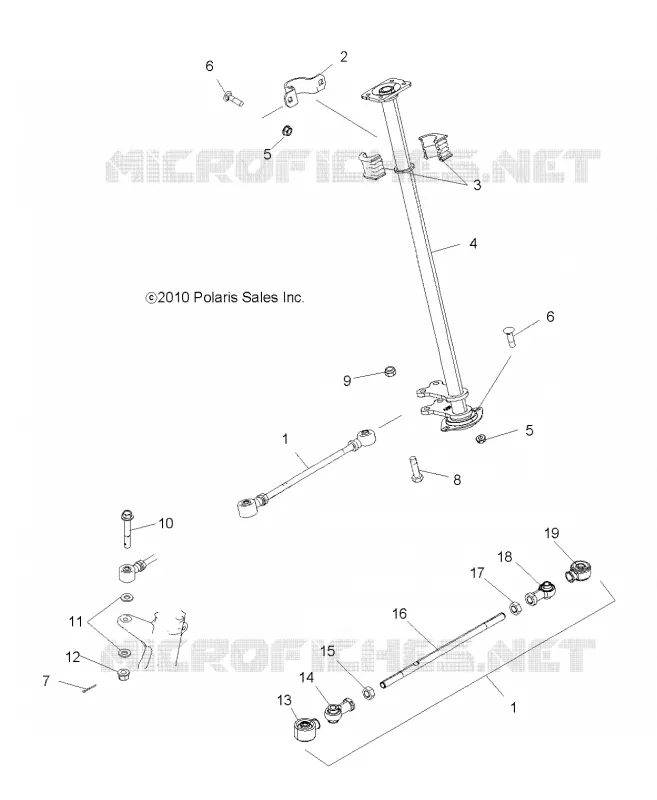

STEERING POST

1

ASM-TIE ROD 1/2-20X14.16 [INCL. 2-8]

1822851

$204,74 Unit Price incl. VAT

2

BRACKET BUSHING STEERING UPPER

5257028

$62,99 Unit Price incl. VAT

2

Bracket Bushing Steering Upper

5246732

$62,99 Unit Price incl. VAT

3

BUSHING UPPER STEERING 1 INCH

5438903

$12,59 Unit Price incl. VAT

4

Post Steering

1823279

Not Available

5

NUT-5/16-18 HX FLG NL-Y [INTL]

7542343

$9,44 Unit Price incl. VAT

6

SCR-RHCAR-5/16-18X0.75GR5ZY3

7517428

$4,19 Unit Price incl. VAT

7

PIN COTTER

7661203

$2,09 Unit Price incl. VAT

8

SCREW

7515415

$2,09 Unit Price incl. VAT

9

NUT-3/8-24(NYLOK)-Y

7542439

$2,09 Unit Price incl. VAT

10

SCR-HXFL-M10X1.25X65 10.9 ZY3

7517909

$10,49 Unit Price incl. VAT

11

WASHER-FL 10.7X21.9X2.5-Y

7556099

$3,14 Unit Price incl. VAT

12

NUT-M10X1.25 FLG NYLOC-OLIVE D

7547333

$3,14 Unit Price incl. VAT

13

BOOT-SEAL ROD END 10MM

5412929

$20,99 Unit Price incl. VAT

14

ROD-END 10MM 1/2-20LH 42 DEG

7061138

$104,99 Unit Price incl. VAT

15

NUT-1/2-20 LH JAM

7547028

$4,19 Unit Price incl. VAT

16

ROD-TIE 1/2-20X12.21

5134242

$83,99 Unit Price incl. VAT

17

NUT-1/2-20 HX JM-Y

7542711

$4,19 Unit Price incl. VAT

18

ROD-END 3/8 1/2-20RH 44DEG

7061139

$115,49 Unit Price incl. VAT

19

BOOT-SEAL ROD END 1/2 IN

5412928

$20,99 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
