1
Engine displacement
0
2
Year
1995
3
Trim
EURO WIDETRAK LX - E952064
4
Parts Catalog

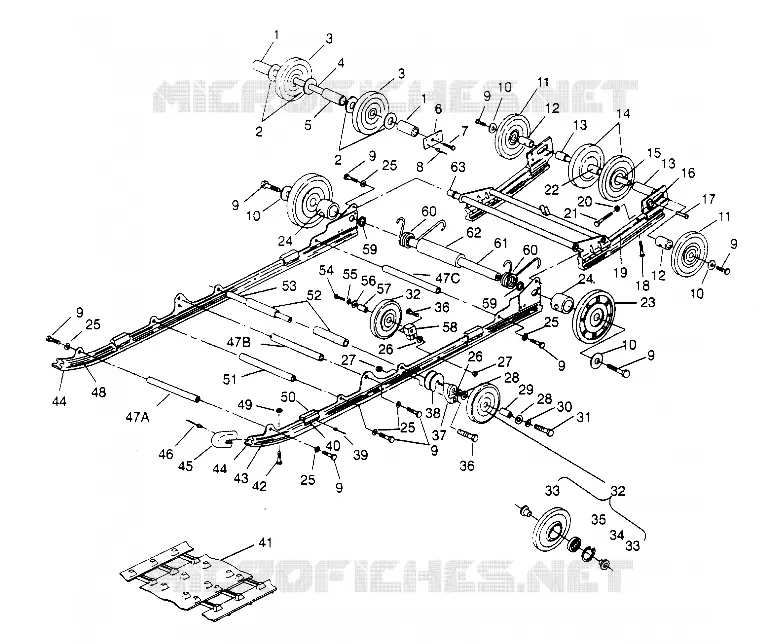

SUSPENSION ASSEMBLY WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952064 (4928942894B011)
5
Parts Diagram
Parts Catalog
GEARCASE ASSEMBLY WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952064 (4928942894B009)
by
ENGINE MOUNTING WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952064 (4928942894C003)
SUSPENSION ASSEMBLY WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952064 (4928942894B011)
1
1
2
2
3
3
4
5
6
7
8
9
9
9
9
9
9
9
9
9
10
10
10
10
11
11
12
12
13
13
14
15
16
17
18
19
20
21
22
23
24
24
25
25
25
25
25
26
26
27
27
28
28
29
30
31
32
32
33
33
34
35
36
36
37
38
39
40
41
42
43
44
44
45
46
47
47
47
48
49
50
51
52
53
54
55
56
57
58
59
59
60
60
61
62
63
1
1
2
2
3
3
4
5
6
7
8
9
9
9
9
9
9
9
9
9
10
10
10
10
11
11
12
12
13
13
14
15
16
17
18
19
20
21
22
23
24
24
25
25
25
25
25
26
26
27
27
28
28
29
30
31
32
32
33
33
34
35
36
36
37
38
39
40
41
42
43
44
44
45
46
47
47
47
48
49
50
51
52
53
54
55
56
57
58
59
59
60
60
61
62
63
1
SPACER
5333019067
$27,29 Unit Price incl. VAT
2
WASHER FLAT
7555726
$3,14 Unit Price incl. VAT
3
WHEEL-TRACK CARRIER
1543013
$99,74 Unit Price incl. VAT
4
SHAFT MTG CARRIER
5020558
Not Available
5
SPACER
5333020067
$34,64 Unit Price incl. VAT
6
PLATE TUNNEL CARRIER BLK.
5211220067
Not Available
7
BOLT(10)
7515432
Not Available
8
RIVET SEMI-TUBE (50)
7661812
Not Available
9
BOLT(10)
7515526
7517731
$2,09 Unit Price incl. VAT
10
WASHER(10) Substituted by 7556130
7571629
7556130
$11,54 Unit Price incl. VAT
11
WHEEL IDLER OUTER RED (400 650 Only)
1594039
Not Available
12
SPACER-IDLER-OUTER
5332641
Not Available
13
SPACER R.IDLER SIDE
5333037
Not Available
14
WHEEL IDLER Substituted by 1594079-070
1594021
Not Available
15
SHAFT R.IDLER Substituted by 5020717
5020552
Not Available
16
BLOCK IDLER BOLT ADJUSTING
5130530
$62,99 Unit Price incl. VAT
17
RIVET
7621501
$4,19 Unit Price incl. VAT
18
SCREW(10)
7512225
$7,34 Unit Price incl. VAT
19
PIVOT SWING ARM ASM. Substituted by 1541133
1540640
Not Available
20
NUT-3/8-16-Y
7542404
$3,14 Unit Price incl. VAT
21
SCR-3/8-16X3 1/2HXHD TAP GR5-Y
7515459
$10,49 Unit Price incl. VAT
22
SPACER R.IDLER INNER
5333013
Not Available
23
WHEEL IDLER RED Substituted by 1594039
1594052
Not Available
24
TUBE SPACER OUTSIDE CENTER
5330171067
$27,29 Unit Price incl. VAT
25
WASHER-SPRING-LOCK
7552603
$1,56 Unit Price incl. VAT
26
SPACER BOGIE WHEEL
5630399
$20,99 Unit Price incl. VAT
27
Nut
7542403
Not Available
28
WASHER-.438X1.375X.083 FL-B
7555852
$4,19 Unit Price incl. VAT
29
SPACER WHEEL
5333116
$13,64 Unit Price incl. VAT
30
WASHER LOCK(10)
7553101
$7,34 Unit Price incl. VAT
31
BOLT(10)
7512538
$11,54 Unit Price incl. VAT
32
WHEEL IDLER
1543018
$115,49 Unit Price incl. VAT
33
INSERT WHEEL
5431531
$19,94 Unit Price incl. VAT
34
RING RETAINING
7718407
$9,44 Unit Price incl. VAT
35
BEARING CHAINCASE
3514305
$34,64 Unit Price incl. VAT
36
SCR-HH-3/8-24X5.5 GR5 ZY3
7512404
$7,34 Unit Price incl. VAT
37
SPACER-.792 X1.010 X1.35
5333012
$20,99 Unit Price incl. VAT
38
ROLLER SPRING
5431366
$19,94 Unit Price incl. VAT
39
RIVET
7621476
$2,09 Unit Price incl. VAT
40
ANGLE REINFORCEMENT BUMPER
5222629
$26,24 Unit Price incl. VAT
41
TRACK (WIDETRAK) Substituted by 5411040
5410550
Not Available
42
SCREW
7512227
$6,29 Unit Price incl. VAT
43
ASM. RAIL LH [INCL. 1 2 4-9]
1540751
$629,99 Unit Price incl. VAT
44
SLIDER BLK. Substituted by 5521320
5521296
Not Available
45
COVER RAIL TIP
5430627
$62,99 Unit Price incl. VAT
46
RIVET
7621435
$2,09 Unit Price incl. VAT
47
SHAFT PIVOT ARM FR. Substituted by 5020718
5020551
Not Available
48
ASM. RAIL LH [INCL. 1 2 4-9]
1540752
$629,99 Unit Price incl. VAT
49
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
50
BUMPER SUSPENSION
5810554
$15,74 Unit Price incl. VAT
51
SHAFT SPANNER
5020720
$52,49 Unit Price incl. VAT
52
SPACER R.SHOCK
5333138
$54,59 Unit Price incl. VAT
53
SHAFT REAR SHOCK Substituted by 5020719
5020651
$68,24 Unit Price incl. VAT
54
SCREW
7512659
$13,64 Unit Price incl. VAT
55
WASHER SPLIT LOCK
7553201
$7,34 Unit Price incl. VAT
56
WASHER
7555804
$7,34 Unit Price incl. VAT
57
SPACER
5332786
$13,64 Unit Price incl. VAT
58
BRACKET BOGIE WHEEL
5130570
$89,24 Unit Price incl. VAT
59
BUSHING-.781 X1.250X.060-Y
7556301
$6,29 Unit Price incl. VAT
60
SPRING EXTENSION REAR
7041231067
$99,74 Unit Price incl. VAT
61
SHAFT
5020726
$62,99 Unit Price incl. VAT
62
SPACER BLK
5333014067
$68,24 Unit Price incl. VAT
63
SHAFT PIVOT ARM
5020725
$52,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.

Other Parts for EURO WIDETRAK LX - E952064

TUNNEL ASSEMBLY WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952064 (4928942894A006)

TUNNEL ASSEMBLY WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952064 (4928942894A006)

for EURO WIDETRAK LX - E952064 from 1995

SEAT GAS TANK ASSEMBLY WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E9 (4928942894A007)

SEAT GAS TANK ASSEMBLY WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E9 (4928942894A007)

for EURO WIDETRAK LX - E952064 from 1995

NOSEPAN WIDETRAK LX 0952064 and EUROPEAN WIDETRAK LX E952064 (4928942894A008)

NOSEPAN WIDETRAK LX 0952064 and EUROPEAN WIDETRAK LX E952064 (4928942894A008)

for EURO WIDETRAK LX - E952064 from 1995

HOOD ASSEMBLY WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952064 (4928942894A010)

HOOD ASSEMBLY WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952064 (4928942894A010)

for EURO WIDETRAK LX - E952064 from 1995

FRONT SUSPENSION AND SKI WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952 (4928942894B002)

FRONT SUSPENSION AND SKI WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952 (4928942894B002)

for EURO WIDETRAK LX - E952064 from 1995

STEERING

STEERING

for EURO WIDETRAK LX - E952064 from 1995

STEERING ASSEMBLY WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952064 (4928942894B005)

STEERING ASSEMBLY WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952064 (4928942894B005)

for EURO WIDETRAK LX - E952064 from 1995

BRAKE WIDETRAK LX 0952064 (4928942894B006)

BRAKE WIDETRAK LX 0952064 (4928942894B006)

for EURO WIDETRAK LX - E952064 from 1995

FRONT TORQUE ARM WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E95 (4928942894B013)

FRONT TORQUE ARM WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E95 (4928942894B013)

for EURO WIDETRAK LX - E952064 from 1995

REAR TORQUE ARM WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952 (4928942894B014)

REAR TORQUE ARM WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952 (4928942894B014)

for EURO WIDETRAK LX - E952064 from 1995

DRIVE CLUTCH ASSEMBLY WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952064 (4928942894C001)

DRIVE CLUTCH ASSEMBLY WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952064 (4928942894C001)

for EURO WIDETRAK LX - E952064 from 1995

DRIVEN CLUTCH WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952064 (4928942894C002)

DRIVEN CLUTCH WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952064 (4928942894C002)

for EURO WIDETRAK LX - E952064 from 1995

SHIFT LINKAGE ASSEMBLY WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E95206 (4928942894C007)

SHIFT LINKAGE ASSEMBLY WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E95206 (4928942894C007)

for EURO WIDETRAK LX - E952064 from 1995

CRANKCASE ASSEMBLY WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952064 (4928942894C008)

CRANKCASE ASSEMBLY WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952064 (4928942894C008)

for EURO WIDETRAK LX - E952064 from 1995

CYLINDER WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952064 (4928942894C009)

CYLINDER WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952064 (4928942894C009)

for EURO WIDETRAK LX - E952064 from 1995

PISTON CRANKSHAFT WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952064 (4928942894C010)

PISTON CRANKSHAFT WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952064 (4928942894C010)

for EURO WIDETRAK LX - E952064 from 1995

WATER PUMP WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952064 (4928942894C011)

WATER PUMP WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952064 (4928942894C011)

for EURO WIDETRAK LX - E952064 from 1995

RECOIL STARTER ASSEMBLY WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E9520 (4928942894D002)

RECOIL STARTER ASSEMBLY WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E9520 (4928942894D002)

for EURO WIDETRAK LX - E952064 from 1995

DECALS WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952064 (4928942894A012)

DECALS WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952064 (4928942894A012)

for EURO WIDETRAK LX - E952064 from 1995

HOOD

HOOD

for EURO WIDETRAK LX - E952064 from 1995

CONSOLE WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952064 (4928942894A014)

CONSOLE WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952064 (4928942894A014)

for EURO WIDETRAK LX - E952064 from 1995

RACK TUNNEL EXTENSION ASSEMBLY WIDETRAK LX 0952064 AND EUROPEAN WIDETR (4928942894B001)

RACK TUNNEL EXTENSION ASSEMBLY WIDETRAK LX 0952064 AND EUROPEAN WIDETR (4928942894B001)

for EURO WIDETRAK LX - E952064 from 1995

BRAKE EUROPEAN WIDETRAK LX E952064 (4928942894B007)

BRAKE EUROPEAN WIDETRAK LX E952064 (4928942894B007)

for EURO WIDETRAK LX - E952064 from 1995

DRIVE SHAFT ASSEMBLY WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952064 (4928942894B008)

DRIVE SHAFT ASSEMBLY WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952064 (4928942894B008)

for EURO WIDETRAK LX - E952064 from 1995

GEARCASE ASSEMBLY WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952064 (4928942894B009)

GEARCASE ASSEMBLY WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952064 (4928942894B009)

for EURO WIDETRAK LX - E952064 from 1995

SUSPENSION ASSEMBLY WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952064 (4928942894B011)

SUSPENSION ASSEMBLY WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952064 (4928942894B011)

for EURO WIDETRAK LX - E952064 from 1995

ENGINE MOUNTING WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952064 (4928942894C003)

ENGINE MOUNTING WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952064 (4928942894C003)

for EURO WIDETRAK LX - E952064 from 1995

EXHAUST SYSTEM WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952064 (4928942894C004)

EXHAUST SYSTEM WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952064 (4928942894C004)

for EURO WIDETRAK LX - E952064 from 1995

OIL TANK AIR BOX WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E (4928942894C005)

OIL TANK AIR BOX WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E (4928942894C005)

for EURO WIDETRAK LX - E952064 from 1995

COOLING SYSTEM WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952064 (4928942894C006)

COOLING SYSTEM WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952064 (4928942894C006)

for EURO WIDETRAK LX - E952064 from 1995

CARBURETOR WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952064 (4928942894C012)

CARBURETOR WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952064 (4928942894C012)

for EURO WIDETRAK LX - E952064 from 1995

FUEL PUMP WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952064 (4928942894C013)

FUEL PUMP WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952064 (4928942894C013)

for EURO WIDETRAK LX - E952064 from 1995

OIL PUMP ASSEMBLY WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952064 (4928942894C014)

OIL PUMP ASSEMBLY WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952064 (4928942894C014)

for EURO WIDETRAK LX - E952064 from 1995

MAGNETO ASSEMBLY WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952064 (4928942894D001)

MAGNETO ASSEMBLY WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952064 (4928942894D001)

for EURO WIDETRAK LX - E952064 from 1995

POLARIS EURO WIDETRAK LX - E952064 1995

EURO WIDETRAK LX - E952064

EURO WIDETRAK LX - E952064

Model : WIDETRAK

Year : 1995

New and OEM parts
International Shipping
Official price POLARIS
A team of experts at your service
Secure Payment
By your side since 2001
Customer Reviews
4.2 /5
1764 Reviews
View all reviews
Spare parts catalogue for all brands
