1
Engine displacement
0
2
Year
1995
3
Trim
EURO WIDETRAK LX - E952064
4
Parts Catalog

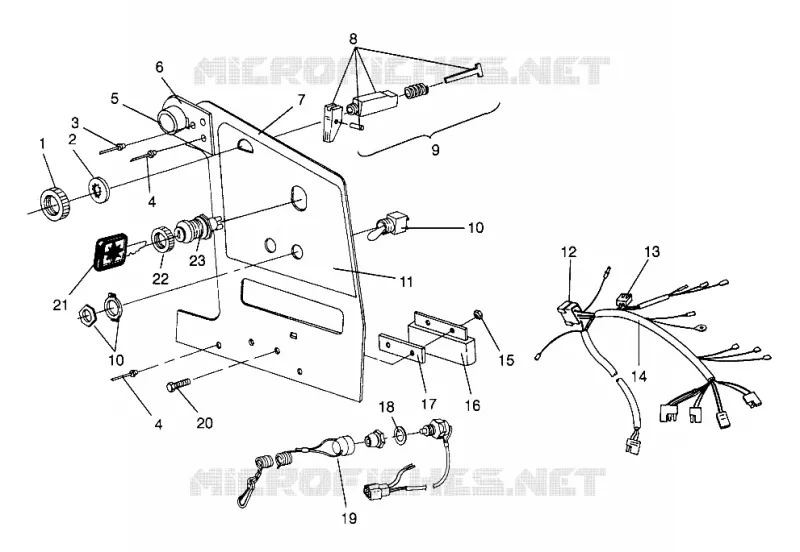

CONSOLE WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952064 (4928942894A014)
5
Parts Diagram
Parts Catalog
HOOD
by
RACK TUNNEL EXTENSION ASSEMBLY WIDETRAK LX 0952064 AND EUROPEAN WIDETR (4928942894B001)
CONSOLE WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952064 (4928942894A014)
1
2
3
4
4
5
6
7
8
9
10
10
11
12
13
14
14
14
14
15
16
17
18
19
20
21
22
23
1
2
3
4
4
5
6
7
8
9
10
10
11
12
13
14
14
14
14
15
16
17
18
19
20
21
22
23
1
Nut Choke Slide
7080229
$36,74 Unit Price incl. VAT
2
Washer Inter Lock
7571610
$7,34 Unit Price incl. VAT
3
RIVET (50)
7621477
$2,09 Unit Price incl. VAT
4
RIVET INTERLOCK B(50)
7661638
$2,09 Unit Price incl. VAT
5
GUIDE RECOIL
5431385
$19,94 Unit Price incl. VAT
6
BRKT ROPE GUIDE BLK.
5222682067
Not Available
7
CONSOLE BLK(W#TRAK)
5222680067
Not Available
8
KIT CHOKE CONTROL INCL. ANCHOR FLIPPER PIN
2200188
$52,49 Unit Price incl. VAT
9
CABLE CHOKE
7080290
$194,24 Unit Price incl. VAT
10
SWITCH H-BAR HEATER (Incl. Nut & Face Plate)
4110066
Not Available
11
DECAL CONSOLE [No Longer Available]
7072973
Not Available
12
HOUSING W/RECEPTACLE
4020057
$5,66 Unit Price incl. VAT
13
CONNECTOR BRAKE SWITCH
4020112
Not Available
14
HARNESS WIRE
2460333
Not Available
14
HARNESS MAIN WIRE (EUR) (Euro)
2460519
Not Available
15
NUT-NYLOC 10-24 Y
7541925
$1,56 Unit Price incl. VAT
16
REGULATOR 14 VAC.LR-9
4060122
2203873
$188,99 Unit Price incl. VAT
17
SPACER REGULATOR
5211573
Not Available
18
WASHER(10)
7555817
Not Available
19
SWITCH TETHER Substituted by 2870668
4110156
$125,99 Unit Price incl. VAT
20
BOLT(10)
7512031
$3,98 Unit Price incl. VAT
21
CAP W/KEY NOTE: WHEN ORDERING IGNITION KEY PN 5410611 BE SURE TO SPECIFY IF FOR AN A B C D OR E SWITCH. LETTER CODE WILL BE LABELED ON UNDERSIDE OF SWITCH BODY BEHIND CONSOLE. KEY DOT CODE FOUND O
5410611
Not Available
22
NUT IGN.SWITCH(10)
7543101
Not Available
23
KIT IGN. SWITCH (Incl. 6 7 9)
2200357
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
