1
Engine displacement
0
2
Year
1995
3
Trim
EURO WIDETRAK LX - E952064
4
Parts Catalog

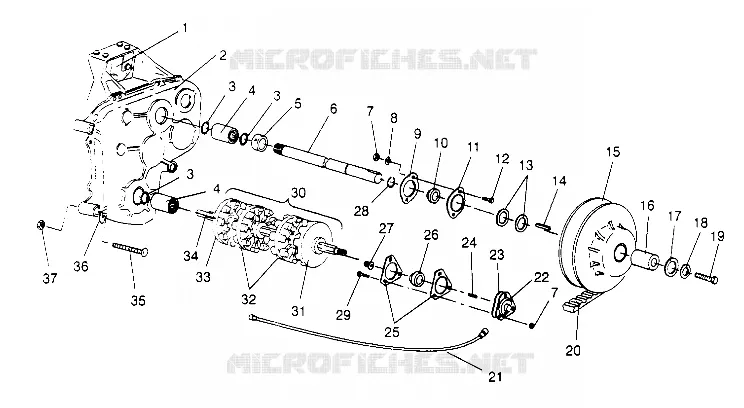

DRIVE SHAFT ASSEMBLY WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952064 (4928942894B008)
5
Parts Diagram
Parts Catalog
BRAKE EUROPEAN WIDETRAK LX E952064 (4928942894B007)
by
GEARCASE ASSEMBLY WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952064 (4928942894B009)
DRIVE SHAFT ASSEMBLY WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952064 (4928942894B008)
1
15
3
3
3
4
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
36
36
36
36
36
36
36
36
36
36
36
36
36
36
36
37
1
15
3
3
3
4
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
36
36
36
36
36
36
36
36
36
36
36
36
36
36
36
37
1
CALIPER
1930593
Not Available
2
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
3
O-RING
5410630
$3,66 Unit Price incl. VAT
4
COUPLER GREASEABLE
1341096
Not Available
5
COLLAR SHAFT
7010038
Not Available
6
JACKSHAFT BLK (WIDETRAK) Substituted by 6230095-067
6230074067
Not Available
7
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
8
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
9
FLANGETTE 2 BOLT
5222393
5270869
$36,74 Unit Price incl. VAT
10
BEARING 1 IN.(GREASEABLE)
3514511
Not Available
11
FLANGETTE W/GREASE GROOVE 2-BOLT
5222647
$47,24 Unit Price incl. VAT
12
BOLT(10) Substituted by 7512377
7512394
7512377
$9,44 Unit Price incl. VAT
13
BUSHING
7556509
$3,14 Unit Price incl. VAT
14
KEY-SQUARE(10)
7721204
$5,76 Unit Price incl. VAT
15
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
16
SPACER INLET SHAFT
5431482
$31,80 Unit Price incl. VAT
17
WASHER
7555806
$1,56 Unit Price incl. VAT
18
WASHER SPRING(10)
7571626
Not Available
19
BOLT(10)
7515502
$10,49 Unit Price incl. VAT
20
BELT DRIVE(5)
3211042
$141,21 Unit Price incl. VAT
21
CABLE SPEEDO.
3280094
$115,49 Unit Price incl. VAT
22
ADAPTER DRIVE W/ZERK
3280116
3280540
$188,99 Unit Price incl. VAT
23
GASKET
5830012
$4,19 Unit Price incl. VAT
24
SQ. KEY SPEEDOMETER (10)
3280017
$26,24 Unit Price incl. VAT
25
FLANGETTE
5222751
$26,24 Unit Price incl. VAT
26
BEARING DRIVESHAFT
3514518
Not Available
27
BUSHING METAL SPEEDO
3280019
$20,99 Unit Price incl. VAT
28
RING RETAINING
7710422
$7,34 Unit Price incl. VAT
29
BOLT CARRIAGE
7512331
$7,34 Unit Price incl. VAT
30
DRIVESHAFT ASM.(W#TRAK)
1590227
Not Available
31
SPROCKET 9T LH
5431181
Not Available
32
SPROCKET 9T
5431131
Not Available
33
SPROCKET 9T RH
5431379
Not Available
34
SHAFT DRIVE (W#TRAK)
6230064
Not Available
35
BOLT(10)
7515474
Not Available
36
SHIM CHAINCASE .010
5211065
$52,49 Unit Price incl. VAT
36
SHIM CHAINCASE .063
5210759
$6,29 Unit Price incl. VAT
36
SHIM CHAINCASE .080
5210760
$6,29 Unit Price incl. VAT
36
SHIM CHAINCASE .020
5210764
$15,74 Unit Price incl. VAT
37
NUT FLANGE
7542423
$7,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
