1
Engine displacement
0
2
Year
1995
3
Trim
EURO WIDETRAK LX - E952064
4
Parts Catalog

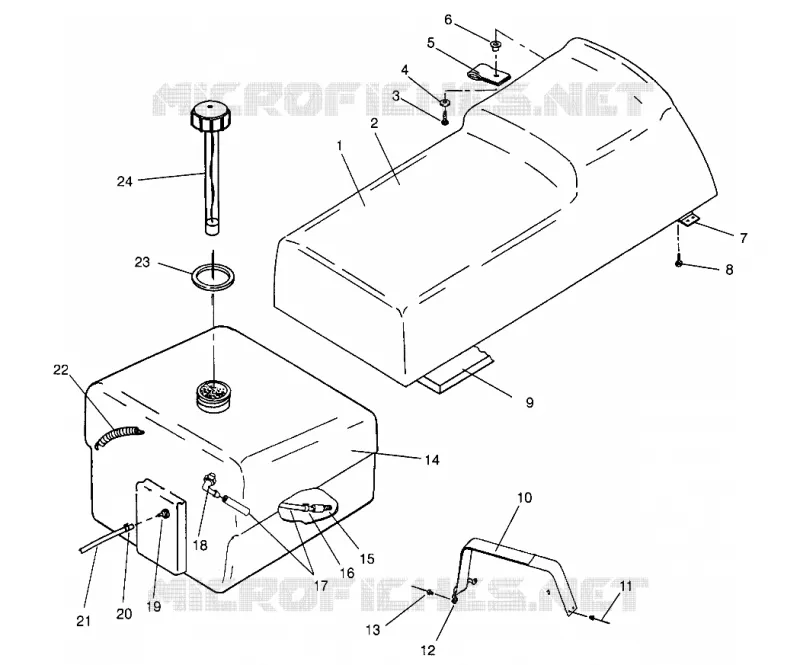

SEAT GAS TANK ASSEMBLY WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E9 (4928942894A007)
5
Parts Diagram
Parts Catalog
TUNNEL ASSEMBLY WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E952064 (4928942894A006)
by
NOSEPAN WIDETRAK LX 0952064 and EUROPEAN WIDETRAK LX E952064 (4928942894A008)
SEAT GAS TANK ASSEMBLY WIDETRAK LX 0952064 AND EUROPEAN WIDETRAK LX E9 (4928942894A007)
1
2
3
4
5
6
12
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
2
3
4
5
6
12
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
SEAT ASM 2-UP
2681651
Not Available
2
COVER SEAT
2681429
Not Available
3
BOLT
7511989
Not Available
4
WASHER-.250X.563X.047 WRGHT-Y
7558203
$6,29 Unit Price incl. VAT
5
PULL SEAT
5810464
Not Available
6
TEENUT(10)
7541930
Not Available
7
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
8
SCREW(10)
7511990
Not Available
9
PAD BOTTOM SEAT [No Longer Available]
5810446
Not Available
10
SEATBELT ASM (W#TRAK) (Incl. 14)
2690086
Not Available
11
RIVET
7621467
$2,09 Unit Price incl. VAT
12
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
13
RIVET INTERLOCK B(50)
7661638
$2,09 Unit Price incl. VAT
14
TANK FUEL(WIDETRAK) Substituted by 2511186
5431143
Not Available
15
FUELPICKUP W/STRAINER
7052037
7052301
$26,24 Unit Price incl. VAT
16
RING COMPRESSION
7080402
$3,14 Unit Price incl. VAT
17
HOSE [BULK SVC]
84500031525
$136,49 Unit Price incl. VAT
18
FITTING 90 DEGREE
7052095
$9,44 Unit Price incl. VAT
19
FITTING OUTLET DOUBLE
7052023
$36,74 Unit Price incl. VAT
20
CLAMP-HOSE (LARGE GREEN)
7080307
$1,56 Unit Price incl. VAT
21
HOSE-POLY CLEAR 3/16 OD 1/8 ID
8360009600
$83,99 Unit Price incl. VAT
22
SPRING TANK FRONT
7042020
$27,29 Unit Price incl. VAT
23
GASKET GAS CAP
5810513
$15,74 Unit Price incl. VAT
24
CAP W/GAUGE GAS
2511246
$83,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
