1
Engine displacement
800
2
Year
2006
3
Trim
SPORTSMAN 800 EFI - A06MH76AL
4
Parts Catalog
REAR WHEEL
5
Parts Diagram
Parts Catalog
REAR GEARCASE
by
BRAKE LINES, FRONT
REAR WHEEL
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
Tire 26x11-12
5412661
5419038
$269,84 Unit Price incl. VAT
2
Rim Rear NBU [AT]
1520457455
Not Available
2
WELD-RIM REAR 12X8.0 BLK [TO 9/4/2023]
1520457067
1523450-067
$225,21 Unit Price incl. VAT
3
DUSTCOVER HUB
5411164
5413427
$52,49 Unit Price incl. VAT
4
NUT CASTLE(10)
7543005
Not Available
5
PIN-COTTER 1/8X1 1/2-Y
7661404
$9,44 Unit Price incl. VAT
6
WASHER-CONE.755X1.5X.072-.107P [RRP99C]
7555796
$14,69 Unit Price incl. VAT
7
Hub Rear Wheel (AA)
5134311
Not Available
8
STUD(10)
7515513
$2,09 Unit Price incl. VAT
9
RING-RETAINING 2.875 INTERNAL
7710440
$18,89 Unit Price incl. VAT
10
Bearing Ball
3585502
3514635
$73,49 Unit Price incl. VAT
11
Carrier Bearing Wheel
5134206
$195,29 Unit Price incl. VAT
12
SCR-HH-5/16-18X0.75 GR5 ZY3 NY
7512325
$4,19 Unit Price incl. VAT
13
Disc Brake Rear
5244635
$141,74 Unit Price incl. VAT
14
VALVE-RIM
1525017
$12,59 Unit Price incl. VAT
15
NUT-FLANGE TWO PIECE 3/8-24
7547237
$4,19 Unit Price incl. VAT

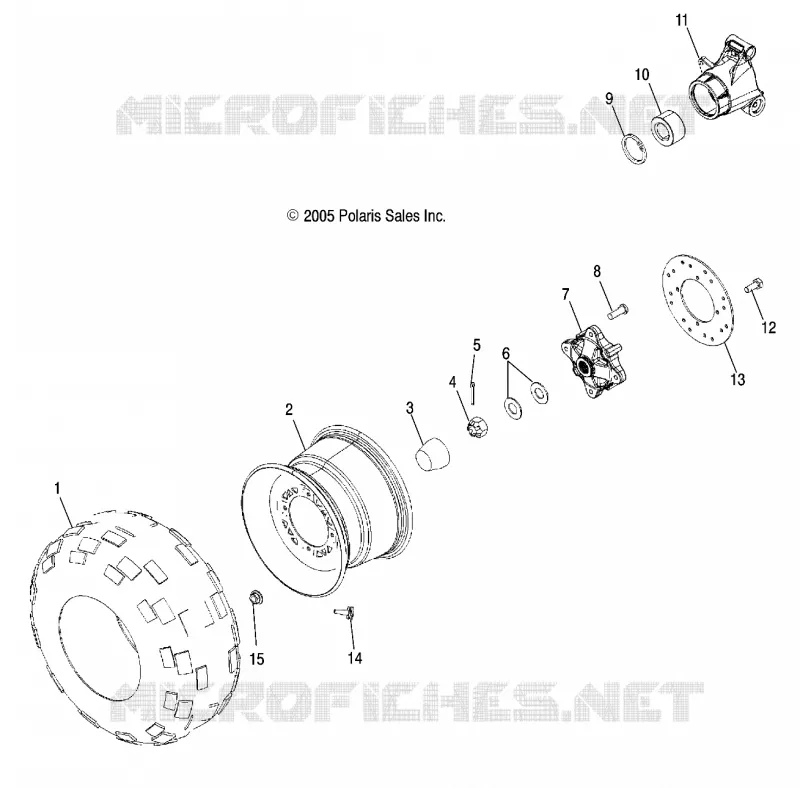

Find the detailed REAR WHEEL POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
