1
KIT FUSIBLE LINK 1.0 MM
2202670
$68,24 Unit Price incl. VAT
1
KIT FUSIBLE LINK .8 MM
2202607
$73,49 Unit Price incl. VAT
1
Kit Harness CPS
2878077
$220,49 Unit Price incl. VAT
1
Harness Main
2410528
Not Available
1
Circuit Breaker 20 AMP
2410323
$125,99 Unit Price incl. VAT
1
KIT HARNESS T-BAP
2875542
2878494
$220,49 Unit Price incl. VAT
1
Decal Fuse Block
7171032
Not Available
1
KIT HARNESS ENGINE TEMP
2875543
$209,99 Unit Price incl. VAT
1
Kit Harness TPS
2203801
$220,49 Unit Price incl. VAT
1
Kit Harness Resistor Module
2204890
$257,24 Unit Price incl. VAT
2
Harness Winch
2410535
$173,24 Unit Price incl. VAT
3
Box Battery
5435696
$34,64 Unit Price incl. VAT
4
WASHER-FL .281X.750X.062-Y
7555859
$2,09 Unit Price incl. VAT
5
SCR-TFHFL-1/4-20X0.75 CHS ZY3
7512232
$2,09 Unit Price incl. VAT
6
Battery Top Mount
4010595
4014609
$283,49 Unit Price incl. VAT
7
KIT BATTERY BOLT [INCL. BOLTS NUTS]
2202213
$6,29 Unit Price incl. VAT
8
PAD RACK MOUNTING
5810455
$6,29 Unit Price incl. VAT
9
Strap Battery Holddown
5247376
$26,24 Unit Price incl. VAT
10
Boot Battery Cable Rect. (If built after 11/29/04)
5412874
Not Available
11
Cable Black
4011139
$78,74 Unit Price incl. VAT
12
SCR-1/4-20X5/8 TAP/R-Y
7517386
$2,09 Unit Price incl. VAT
13
Cable Battery/Solenoid (If built before 11/29/04)
4011286
$73,49 Unit Price incl. VAT
14
Switch Magnetic (If built after 1/10/05)
4011251
$141,74 Unit Price incl. VAT
15
CLIP OIL LINE RET.(10)
5432302
Not Available
16
BUSHING OPEN/CLOSE(10)
7080399
Not Available
17
Relay
4011141
$141,74 Unit Price incl. VAT
18
ECU
4011511
Not Available
19
NUT JAM
7547283
$6,29 Unit Price incl. VAT
20
WASHER SPRING LOCK
7552801
$3,14 Unit Price incl. VAT
21
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
22
Cable Solenoid/Starter
4010376
$89,24 Unit Price incl. VAT
23
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
24
SPACER-COIL MOUNT
5436577
$7,34 Unit Price incl. VAT
25
Kit Ignition Coil (Incl. 24 26 28)
2876049
$451,49 Unit Price incl. VAT
26
SCREW(10)
7515156
$7,34 Unit Price incl. VAT
27
Wire Spark Plug 59.3cm
4011365
$89,24 Unit Price incl. VAT
28
Wire Spark Plug 49.5cm
4011364
$115,49 Unit Price incl. VAT
29
SCR-TXPH-10-24X2 CHS ZY3
7518486
$6,29 Unit Price incl. VAT
30
CLAMP-HOSE PLASTIC 1#
7080585
$7,34 Unit Price incl. VAT
31
Fuse 20 AMP
2410365
$89,24 Unit Price incl. VAT
32
Fuse 15 AMP
2410364
$68,24 Unit Price incl. VAT
33
Fuse 6 AMP
2410363
$68,24 Unit Price incl. VAT
34
SCR-#10-24X1/2PH/TORX-TRIRD-Y
7512024
$9,44 Unit Price incl. VAT
35
Clip Rosebud
4020149
$12,59 Unit Price incl. VAT
36
MOUNT CABLE TIE
7080965
$13,64 Unit Price incl. VAT
37
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
38
CABLE-TIE 25-76MM WEATH.-RES.
7080492
$5,24 Unit Price incl. VAT
39
Regulator Volt
4011100
$398,99 Unit Price incl. VAT
40
Bracket Voltage Regulator
5248725
Not Available

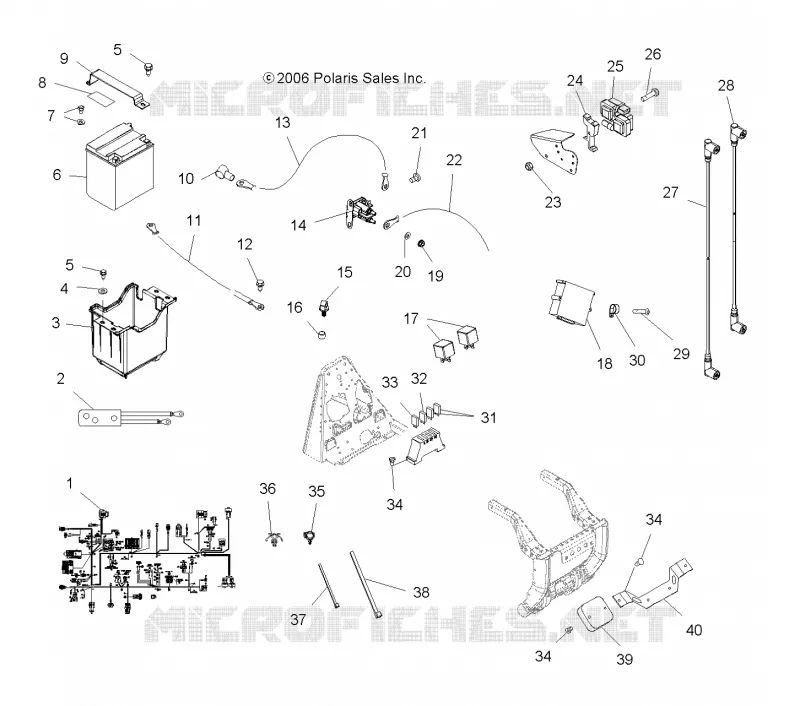

Find the detailed ELECTRICAL POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
