1
Engine displacement
800
2
Year
2006
3
Trim
SPORTSMAN 800 EFI - A06MH76AL
4
Parts Catalog
BRAKE LINES, FRONT
5
Parts Diagram
Parts Catalog
REAR WHEEL
by
REAR RACK MOUNTING
BRAKE LINES, FRONT
1
1
1
2
2
2
3
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
10
1
SEAL
5410988
$9,44 Unit Price incl. VAT
2
BOLT-BANJO 10MMX1.00-6G
1910499
$10,49 Unit Price incl. VAT
3
LINE BRAKE POD
1910913
$120,74 Unit Price incl. VAT
4
FITTING-CROSS ATV BRAKE
7052292
$73,49 Unit Price incl. VAT
5
LINE BRAKE RIGHT FRONT
1910839
$141,74 Unit Price incl. VAT
6
Conduit
8360031145
Not Available
7
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
8
LINE BRAKE LEFT FRONT
1910838
$141,74 Unit Price incl. VAT
9
SCR-#10-24X1/2PH/TORX-TRIRD-Y
7512024
$9,44 Unit Price incl. VAT
10
SWITCH-BRK 1/8#-27 NPTF SEALED [BRAKE LIGHTS]
4110164
2890637
$325,49 Unit Price incl. VAT

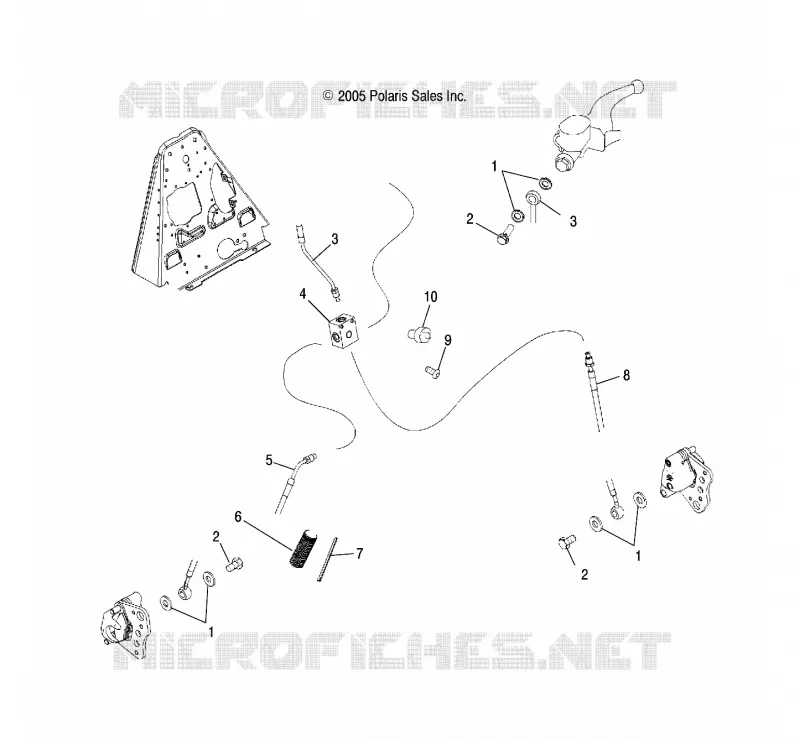

Find the detailed BRAKE LINES, FRONT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
