1
Engine displacement
800
2
Year
2006
3
Trim
SPORTSMAN 800 EFI - A06MH76AL
4
Parts Catalog

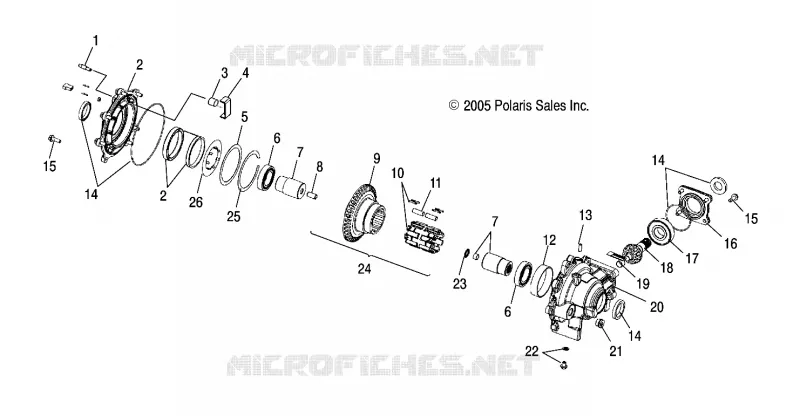

FRONT HOUSING (DEMAND DRIVE)
5
Parts Diagram
Parts Catalog
GEARCASE INTERNALS
by
FRONT HOUSING (DEMAND DRIVE)
-
-
1
2
2
3
4
5
6
6
7
7
8
9
10
10
11
12
13
14
14
14
15
15
16
17
18
10
10
21
22
23
24
25
26
1
2
3
4
5
6
7
8
9
10
11
12
13
14
-
ASM-WEIGHT/BUSHING (10-72)
1332428
$3 008,24 Unit Price incl. VAT
-
KIT BOLT [INCL. 11 BOLTS]
3233955
$57,74 Unit Price incl. VAT
1
Screw Set (1341497)
3234163
Not Available
2
ASM. COVER PLATE [INCL. 2-8 21 36]
3234159
$892,49 Unit Price incl. VAT
3
BUTTON THRUST
3234375
$19,94 Unit Price incl. VAT
4
PLATE THRUST
3234165
$52,49 Unit Price incl. VAT
5
Shim Armature Plate
3234161
$68,24 Unit Price incl. VAT
6
Bearing Roller Ball
3233926
$101,84 Unit Price incl. VAT
7
ASM. RACE/OUTPUT HUB [INCL. 10-13]
3233953
$745,49 Unit Price incl. VAT
8
PIN DOWEL
3233928
$41,99 Unit Price incl. VAT
9
SUBASM. DIFF COVER
3234376
$1 853,24 Unit Price incl. VAT
10
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
10
Asm. Roll Cage [Incl. Spring and Roll Cage]
3234377
$682,49 Unit Price incl. VAT
11
Kit Roller [INCL. 14 ROLLERS]
3233957
$272,99 Unit Price incl. VAT
12
Bushing
3234378
Not Available
13
Fitting Vent
3234379
$11,01 Unit Price incl. VAT
14
Kit Minor Repair [INCL. 6 8 22 23]
3233956
$136,49 Unit Price incl. VAT
15
Screw
3233918
3233955
$57,74 Unit Price incl. VAT
16
Cover Input
3233947
$136,49 Unit Price incl. VAT
17
Bearing Roller Ball
3234112
$101,84 Unit Price incl. VAT
18
Shaft Pinion 11T
3233944
3235387
$1 259,99 Unit Price incl. VAT
19
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
20
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
21
Plug Oil Fill
3233942
$62,99 Unit Price incl. VAT
22
Asm. Drain Plug [Incl. Plug and Washer]
3233951
Not Available
23
Bearing Needle Roller Thrust
3233929
3233953
$745,49 Unit Price incl. VAT
24
Asm. Clutch [Incl. 9-11]
3234380
Not Available
25
Ring Retaining Internal
3234162
$52,49 Unit Price incl. VAT
26
Plate Armature (1341497)
3234160
3234101
$204,74 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
