1
Engine displacement
500
2
Year
2002
3
Trim
SPORTSMAN 6X6 - A02CL50AA
4
Parts Catalog

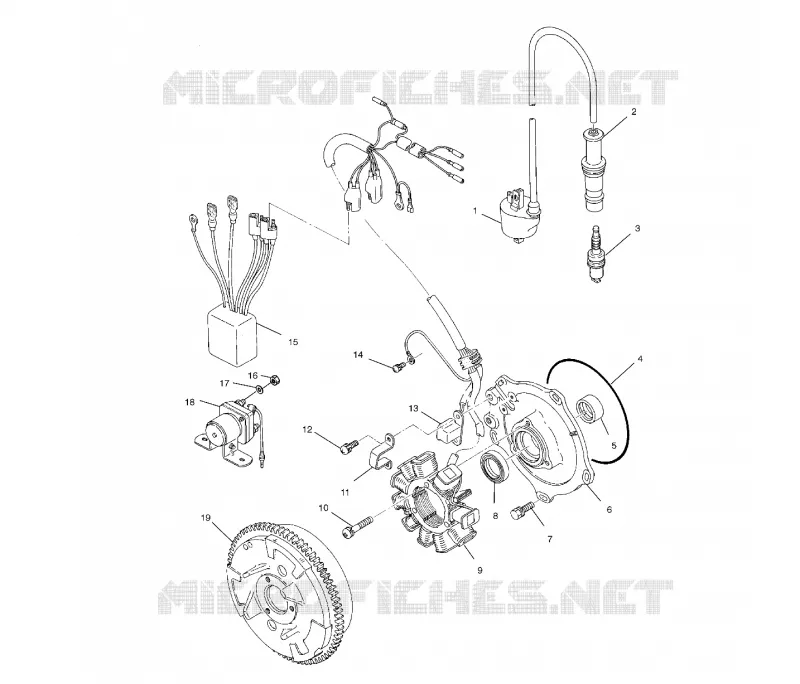

MAGNETO
5
Parts Diagram
Parts Catalog
OIL FILTER
by
STARTING MOTOR
MAGNETO
1
Coil Ignition
3085228
Not Available
1
Asm. Coil Ignition
3085227
Not Available
2
CAP SPARKPLUG *
3084980
$115,49 Unit Price incl. VAT
3
SPARKPLUG BKR5E(4)
3070175
$7,34 Unit Price incl. VAT
4
O-RING
3084978
$68,24 Unit Price incl. VAT
5
BEARING METAL
3084972
Not Available
6
ASM-PLATE (Incl. 5 6 8-12 14 15) (S#99-02080 & after)
3087167
Not Available
6
PLATE (S#99-02080 & after)
3086981
Not Available
6
Asm. Plate [Incl. 5 6 8-14] [through S# 02-00893]
3086980
Not Available
7
BOLT&WASHER ASM.
3081657
$9,44 Unit Price incl. VAT
8
SEAL OIL
3084973
$52,49 Unit Price incl. VAT
9
Stator [Incl. 13][through S# 02-00893]
3086984
Not Available
9
STATOR (Incl. 13) (S#99-02080 & after)
3087168
Not Available
10
SCREW & WASHER (S#99-02080 & after)
3086985
Not Available
11
BAND PULSE
3085554
Not Available
12
SCREW&WASHER ASM.
3084976
Not Available
13
COIL PULSER
3085360
Not Available
14
SCREW&WASHER ASM(10)
3081256
$6,29 Unit Price incl. VAT
15
CDI System [through S# 02-00893]
3086982
Not Available
15
CDI-SYSTEM (S#99-02080 & after)
3087169
Not Available
16
NUT
3083073
$4,19 Unit Price incl. VAT
17
WASHER SPRING(10)
3080077
$4,19 Unit Price incl. VAT
18
SWITCH MAGNETIC *
3085521
4011335
$115,49 Unit Price incl. VAT
19
FLYWHEEL (S#99-02080 & after)
3087166
Not Available
19
Flywheel/Ring Gear [through S# 02-00893]
3086983
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
