1
Engine displacement
500
2
Year
2002
3
Trim
SPORTSMAN 6X6 - A02CL50AA
4
Parts Catalog

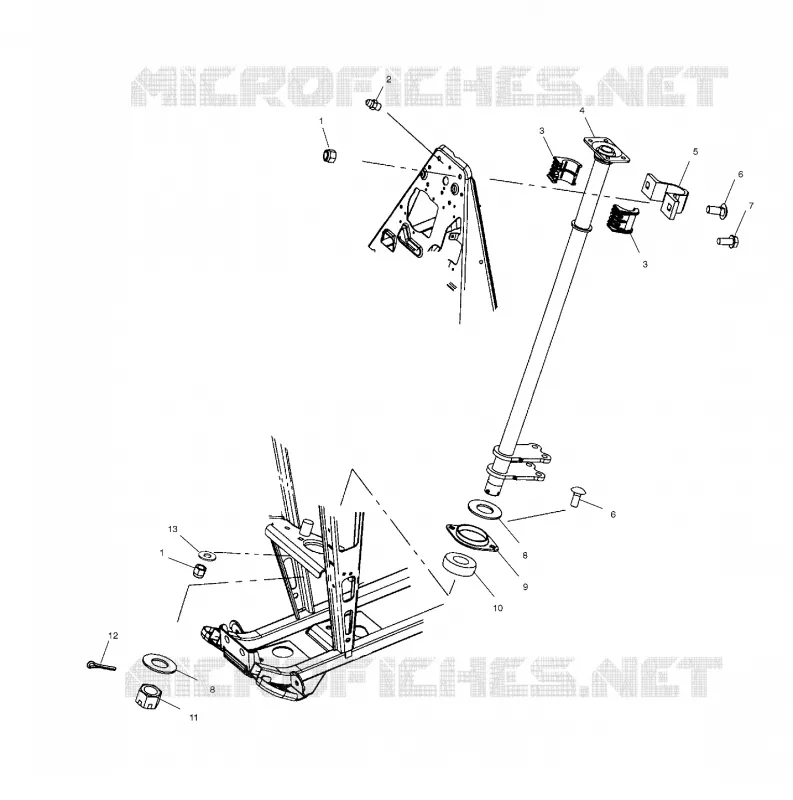

STEERING POST
5
Parts Diagram
Parts Catalog
WISHBONES
by
REAR DRIVE
STEERING POST
1
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
2
FITTING-LUBRICATION 1/4-28
7080424
$9,44 Unit Price incl. VAT
3
Bushing Steering Upper
5433866
5439731
$12,59 Unit Price incl. VAT
4
Post Steering
1821112067
2202825
$419,99 Unit Price incl. VAT
5
Bracket Steering Post
5132679
Not Available
5
Bracket Steering Post
5222999067
5257028
$62,99 Unit Price incl. VAT
6
SCR-RHCAR-5/16-18X0.75 GR5 ZY3
7512377
$9,44 Unit Price incl. VAT
7
BOLT(10)
7515321
Not Available
8
BUSHING-1X1 1/2X .145
7556162
$7,34 Unit Price incl. VAT
9
FLANGETTE 2 BOLT
5222393
5270869
$36,74 Unit Price incl. VAT
10
Bearing
3514352
3514617
$54,59 Unit Price incl. VAT
11
Nut Slotted Hex
7547158
Not Available
12
Pin Cotter
7661633
Not Available
13
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
