1
Engine displacement
500
2
Year
2002
3
Trim
SPORTSMAN 6X6 - A02CL50AA
4
Parts Catalog
RECOIL STARTER
5

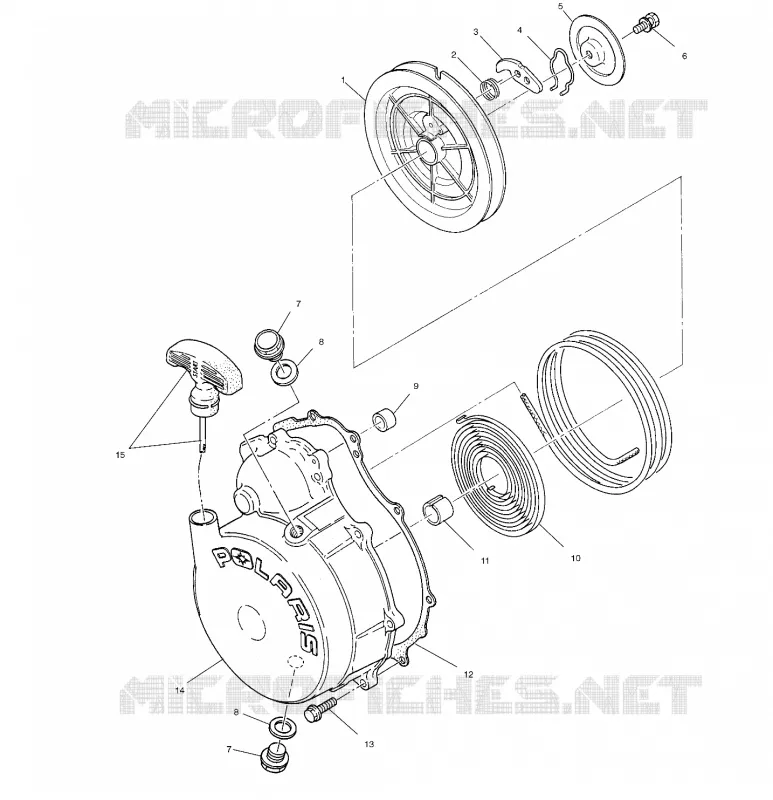

Parts Diagram
Parts Catalog
INLET EXHAUST
by
WATER PUMP
RECOIL STARTER
1
REEL STARTER
3084822
$167,99 Unit Price incl. VAT
2
SPRING RETURN
3083463
$8,39 Unit Price incl. VAT
3
RATCHET
3083378
$36,74 Unit Price incl. VAT
4
SPRING FRICTION
3083379
$52,49 Unit Price incl. VAT
5
PLATE FRICTION
3084744
Not Available
6
BOLT&WASHER ASM.
3085266
Not Available
7
PLUG Substituted by 3086749
3083453
Not Available
8
GASKET
3082956
$9,44 Unit Price incl. VAT
9
BUSHING STARTER
3083669
Not Available
10
Spring Power
3083185
$52,80 Unit Price incl. VAT
11
BUSH
3084750
$13,64 Unit Price incl. VAT
12
GASKET RECOIL
3084933
Not Available
13
BOLT FLANGE(10)
3084877
Not Available
14
Asm. Recoil [Incl. 1-6 9-11 13 14]
3087163
$666,74 Unit Price incl. VAT
14
Asm. Starter Case [Incl. 11]
3087164
Not Available
15
ROPE ASM
3085083
$73,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
