1
Engine displacement
0
2
Year
1996
3
Trim
STORM - 0965782
4
Parts Catalog

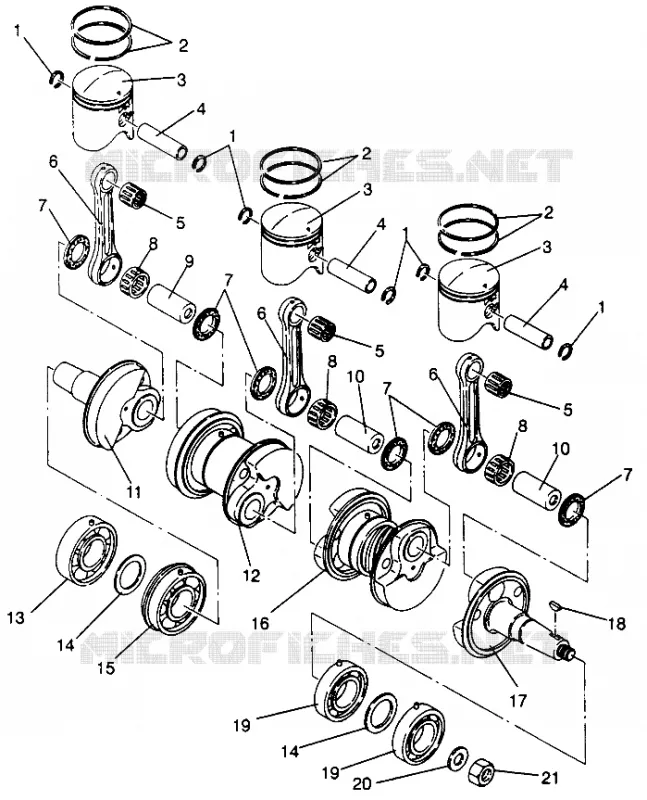

PISTON CRANKSHAFT STORM 0965782, STORM SKS 0965582, EURO STORM E965782 (4931593159D004)
5
Parts Diagram
Parts Catalog
WATER PUMP STORM 0965782, STORM SKS 0965582, EURO STORM E965782, EURO STOR (4931593159D003)
by
CARBURETOR STORM 0965782, STORM SKS 0965582, EURO STORM E965782, E (4931593159D005)
PISTON CRANKSHAFT STORM 0965782, STORM SKS 0965582, EURO STORM E965782 (4931593159D004)
1
CLIP PISTON PIN
3084167
2207579
$356,99 Unit Price incl. VAT
2
RING PISTON (Standard)
3085316
Not Available
3
PISTON STD. (Standard)
3085313
Not Available
4
PIN PISTON
3083858
$40,94 Unit Price incl. VAT
5
BEARING END SMALL
3083216
3515064
$25,71 Unit Price incl. VAT
6
ROD CONNECTING
3085256
Not Available
7
SPACER CRANK PIN
3083277
$27,29 Unit Price incl. VAT
8
BEARING-LARGE END Substituted by 3085628
3083255
$54,59 Unit Price incl. VAT
9
PIN CRANK
3240085
Not Available
10
PIN-CRANK 2
3083254
Not Available
11
CRANKSHAFT 3
3084542
Not Available
12
CRANKSHAFT PTO SIDE (PTO) (Incl. 9)
3084541
Not Available
13
BEARING BALL
3084546
Not Available
14
SPACER
3240088
$19,94 Unit Price incl. VAT
15
BEARING BALL
3084545
Not Available
16
CRANKSHAFT CTR. (Center) (Incl. 6-10 12)
3085328
$290,84 Unit Price incl. VAT
16
CRANKSHAFT MAG.SIDE (Mag) (Incl. 10)
3084540
$455,69 Unit Price incl. VAT
17
CRANKSHAFT 1
3084538
Not Available
17
CRANKSHAFT (Incl. 6-17 19)
3085312
Not Available
18
KEY Substituted by 3081543
3080130
3081543
$26,24 Unit Price incl. VAT
19
BEARING BALL
3084544
Not Available
20
WASHER
3084457
Not Available
21
NUT
3083093
7547895
$7,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
