1
Engine displacement
0
2
Year
1996
3
Trim
STORM - 0965782
4
Parts Catalog
FOX SHOCK
5

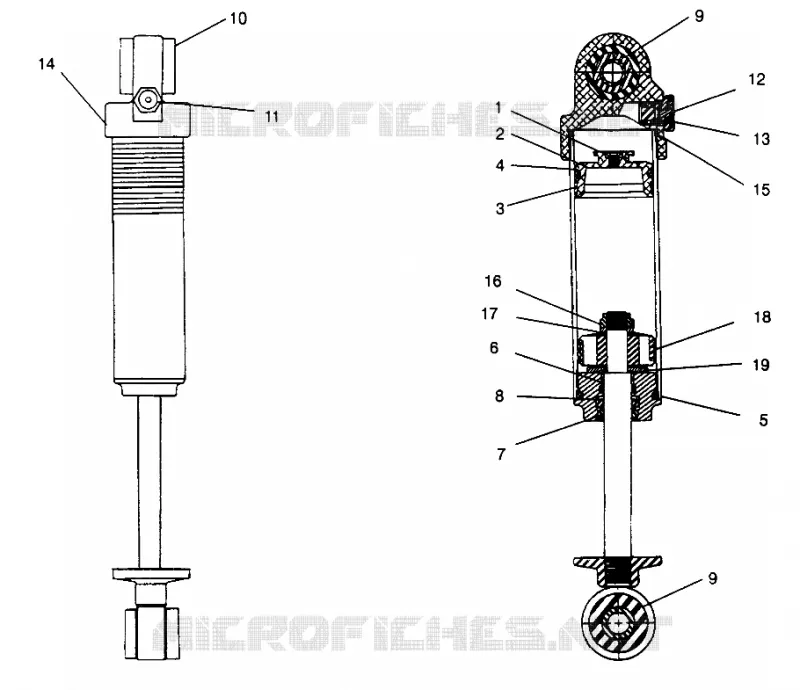

Parts Diagram
Parts Catalog
FOX SHOCK
by
EXHAUST SYSTEM STORM 0965782, STORM SKS 0965582, EURO STORM E965782, EURO S (4931593159C012)
FOX SHOCK
1
SCREW
1500018
Not Available
2
SCREW
1500011
$101,84 Unit Price incl. VAT
3
RING PISTON FLOATING FOX (Floating)
1500006
$34,64 Unit Price incl. VAT
4
O-RING ENDCAP FOX (10)
1500003
$15,74 Unit Price incl. VAT
5
O-RING (10).103W-1.299ID (Outer)
1500020
$15,74 Unit Price incl. VAT
6
O-RING INNER (10) (Inner)
1500021
$15,74 Unit Price incl. VAT
7
WIPER CLR OUTER (Outer)
1500024
5433298
$23,09 Unit Price incl. VAT
8
WIPER INNER Substituted by 1500266 (Inner)
1500025
1500266
$52,49 Unit Price incl. VAT
9
BUSHING (1.24)
5020640
Not Available
10
BUSHING SHOCK .260 Substituted by 1500184
5431541
Not Available
11
VALVE ASM AIR Substituted by 1500014
1500072
$115,49 Unit Price incl. VAT
12
SCREW
1500019
$11,54 Unit Price incl. VAT
13
O-RING OUTER
1500023
Not Available
14
CAP BODY
1500073
Not Available
15
O-RING-129
1500108
$15,74 Unit Price incl. VAT
16
NUT-LOCK
1500016
$23,09 Unit Price incl. VAT
17
PLATE BACK UP
1500015
$10,49 Unit Price incl. VAT
18
DAMPER PISTONRING FOX
1500002
$54,59 Unit Price incl. VAT
19
SHOCK FR.TRACK FOX
7041402
Not Available
19
PLATE TOP OUT
1500017
$47,24 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
