COOLING SYSTEM STORM 0965782, STORM SKS 0965582, EURO STORM E965782, EURO (4931593159B010)
5
Parts Diagram
Parts Catalog
FRONT SUSPENSION AND SKI STORM 0965782, STORM SKS 0965582, EURO STORM E9657 (4931593159B004)
by
TOOL KIT/BOX STORM 0965782, STORM SKS 0965582, EURO STORM E965782, EU (4931593159B012)

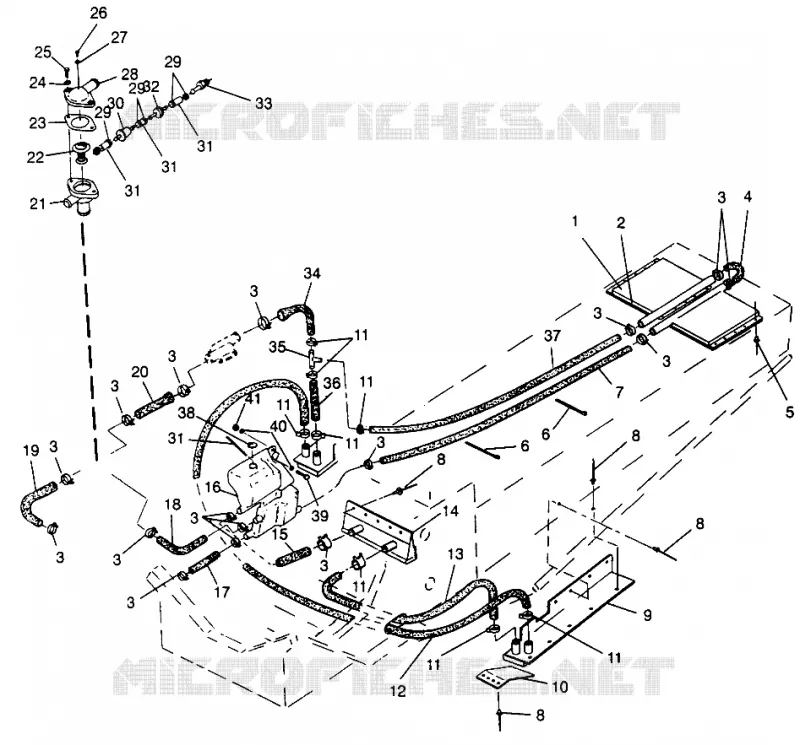

COOLING SYSTEM STORM 0965782, STORM SKS 0965582, EURO STORM E965782, EURO (4931593159B010)
1
EXCHANGER COOL.REAR Substituted by 2511301
2511254
Not Available
2
TAPE 35FT SEAL R.COOL.
5811252
Not Available
3
CLAMP HOSE GRY 35MM.(10) Substituted by 7080844 (Gray)
7080564
7080844
$19,94 Unit Price incl. VAT
4
HOSE COOLING
5410758
Not Available
5
RIVET-3/16-.090-.290
7661637
$2,09 Unit Price incl. VAT
6
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
7
HOSE (1# X 10 FT.)
8450048305
Not Available
8
RIVET INTERLOCK B(50)
7661638
$2,09 Unit Price incl. VAT
9
COOLER RH SIDE(XTRA 10)
2511258
$409,49 Unit Price incl. VAT
9
COOLER LH SIDE(XTRA 10) Substituted by 1240059
2511257
$185,84 Unit Price incl. VAT
10
GUARD COOL.EXT.
5222863
$42,30 Unit Price incl. VAT
11
CLAMP HOSE SIL 27MM.(10) Substituted by 7080841 (Silver)
7080562
7080841
$13,64 Unit Price incl. VAT
12
HOSE-CROSSOVER
5410324
Not Available
13
HOSE-CROSSOVER
5410350
Not Available
14
EXCHANGER COOL.CTR.
2511239
Not Available
15
HOSE CTR.COOLER/TOP SURGE
5411070
Not Available
16
TANK-COOLANT Substituted by 5432541
5432168
Not Available
17
HOSE SURGETANK/WATERPUMP
5411069
Not Available
18
HOSE AUTOSTAT/CTR.SURGE
5411066
Not Available
19
HOSE AUTOSTAT/ENGINE
5411068
Not Available
20
HOSE AUTOSTAT/BRK.COOLER
5411067
Not Available
21
HOUSING THERMOSTAT
5130943
Not Available
22
AUTOSTAT 120DEG.
7051017
Not Available
23
GASKET THERMOSTAT
5830020
Not Available
24
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
26
PLUG AIR VENT Substituted by 7517266
3083350
Not Available
27
GASKET ALUM (10) Substituted by 7555998
3082758
7555998
$2,09 Unit Price incl. VAT
28
CAP THERMOSTAT HSG MACH.
5130942
Not Available
29
CLAMP-HOSE (LARGE GREEN)
7080307
$1,56 Unit Price incl. VAT
30
FILTER WATER LINE Substituted by 2530024
2530010
Not Available
31
HOSE [BULK SVC]
84500031525
$136,49 Unit Price incl. VAT
32
VALVE CHECK
7052038
$20,99 Unit Price incl. VAT
33
FITTING
7052099
$9,44 Unit Price incl. VAT
34
HOSE R.COOLER 3-WAY
5410845
$21,20 Unit Price incl. VAT
35
CONNECTOR-TEE 3/4# BARB
7052093
$15,74 Unit Price incl. VAT
36
HOSE WATER 305 CM.
8450050305
Not Available
37
HOSE 3-WAY R.COOLER
5410962
Not Available
37
HOSE R.COOLER (SKS) (SKS RMK)
5410972
Not Available
38
CAP PRESSURE (13 LB)
2511270
$47,24 Unit Price incl. VAT
39
BOLT(10)
7512240
$7,34 Unit Price incl. VAT
40
WASHER-.312 X .734 X .065-Z
7558302
$3,14 Unit Price incl. VAT
41
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
