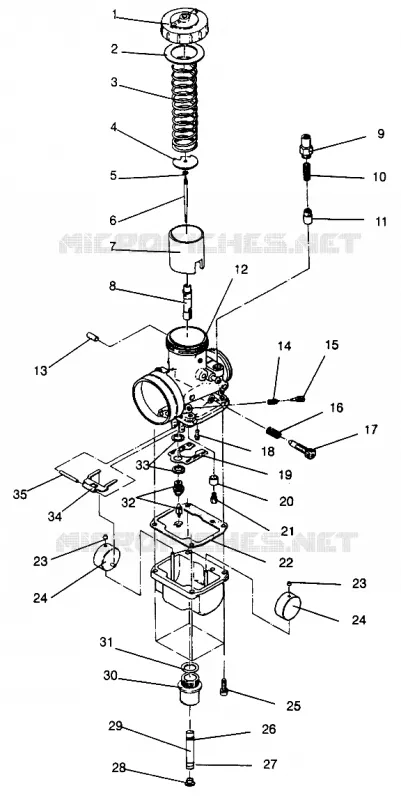

CARBURETOR STORM 0965782, STORM SKS 0965582, EURO STORM E965782, E (4931593159D005) FOR STORM - 0965782 FROM 1996

CARBURETOR STORM 0965782, STORM SKS 0965582, EURO STORM E965782, E (4931593159D005)

1

TOP (Incl. 3)

3130061

Not Available

2

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

3

SPRING THROTTLE

3130444

Not Available

4

PLATE THROTTLE

3130054

$13,64 Unit Price incl. VAT

5

E RING(10) Substituted by 3130508

3130003

$12,59 Unit Price incl. VAT

6

JET NEEDLE (6CGY6-3) (6CGY6-3)

3130652

Not Available

7

VALVE THROTTLE (3.0) (3.0)

3130352

Not Available

8

NEEDLE JET (P-6)247 (P-6) 247 (RMK)

3130655

Not Available

8

JET NEEDLE (Q-0) (Q-O)

3130414

Not Available

9

HOLDER GUIDE

3130199

$52,49 Unit Price incl. VAT

10

SPRING PLUNGER

3130006

$18,89 Unit Price incl. VAT

11

ASM. PLUNGER

3130328

$68,24 Unit Price incl. VAT

12

CARBURETOR #2

3130651

Not Available

12

CARBURETOR #1

3130650

Not Available

12

CARBURETOR #2

3130654

Not Available

12

CARBURETOR #1

3130653

Not Available

13

CAP

3130479

$31,49 Unit Price incl. VAT

14

SPRING AIR ADJUST

3130012

$18,89 Unit Price incl. VAT

15

SCREW AIR

3130011

$36,74 Unit Price incl. VAT

16

SPRING THROTTLE ADJUSTER

3130010

$18,89 Unit Price incl. VAT

17

SCREW THROTTLE STOP

3130009

$36,74 Unit Price incl. VAT

18

PILOT JET #45

3130068

$18,89 Unit Price incl. VAT

18

JET PILOT #50(10) (#50)

3130629

$15,74 Unit Price incl. VAT

19

PLATE

3130243

Not Available

20

RING CARB

3130232

Not Available

21

JET MAIN HX.HD#420(10)

3130142

$15,74 Unit Price incl. VAT

21

JET MAIN HX.HD#350(10) (#350) (3)

3130138

$15,74 Unit Price incl. VAT

21

JET MAIN HX.HD#330(10)

3130136

Not Available

21

JET MAIN HX.HD#400(10)

3130141

$15,74 Unit Price incl. VAT

22

GASKET FLOAT CHAMBER

3130236

$20,99 Unit Price incl. VAT

23

CAP

3130237

$8,39 Unit Price incl. VAT

24

FLOAT ASM

3130021

$83,99 Unit Price incl. VAT

25

SCREW

3130056

$6,29 Unit Price incl. VAT

26

CLAMP HOSE

7080534

$3,14 Unit Price incl. VAT

27

CLAMP HOSE(10)

7080544

Not Available

28

PLUG TRAP

5431893

$26,24 Unit Price incl. VAT

29

FUEL LINE 5 FT.

8450045153

$157,49 Unit Price incl. VAT

30

NIPPLE

3130573

$68,24 Unit Price incl. VAT

31

O-RING

3130239

Not Available

32

NEEDLE VALVE ASM. (1.5)

3130598

Not Available

33

WASHER(10)

3130047

$9,44 Unit Price incl. VAT

34

ARM FLOAT

3130048

Not Available

35

PIN FLOAT

3130361

$18,89 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
