1
Engine displacement
500
2
Year
1994
3
Trim
500 EFI - 0942774
4
Parts Catalog

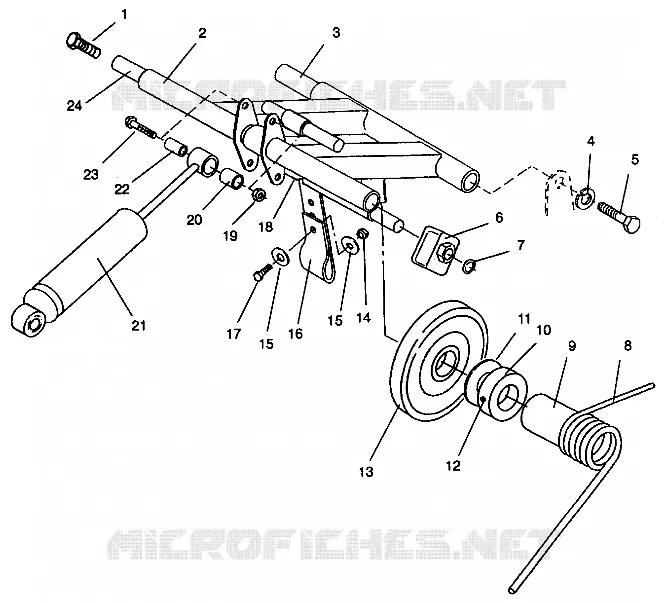

REAR TORQUE ARM 500 EFI 0942774 AND EFI SKS 0942574 (4924982498024A)
5
Parts Diagram
Parts Catalog
FRONT TORQUE ARM 500 EFI 0942774 AND EFI SKS 0942574 (4924982498023A)
by
DRIVE CLUTCH ASSEMBLY 500 EFI 0942774 AND EFI SKS 0942574 (4924982498025A)
REAR TORQUE ARM 500 EFI 0942774 AND EFI SKS 0942574 (4924982498024A)
1
2
3
4
5
6
7
8
8
8
8
9
10
11
12
13
14
15
15
16
17
18
19
20
21
22
23
24
1
2
3
4
5
6
7
8
8
8
8
9
10
11
12
13
14
15
15
16
17
18
19
20
21
22
23
24
1
BOLT NYLOC BLACK(10) Substituted by 7515432 (650 Only)
7515493
Not Available
2
ARM R.TORQUE BLK.
1540723067
Not Available
3
SHAFT R.TORQUE ARM
5020721
Not Available
4
WASHER-SPRING-LOCK
7552603
$1,56 Unit Price incl. VAT
5
BOLT(10) Substituted by 7512492
7515458
7512492
$2,09 Unit Price incl. VAT
6
ROLLER SPRING ADJ.
5431168
Not Available
7
CLIP PUSH ON
7080394
$4,19 Unit Price incl. VAT
8
SPRING LH R.R.SUSP BLK .421
7041337067
Not Available
8
SPRING RH R.R.SUSP BLK .421
7041338067
Not Available
9
SPACER SPRING
5431422
Not Available
10
COLLAR-BRG. LOCK
5010155
Not Available
11
WASHER SPRING
7571605
$11,54 Unit Price incl. VAT
12
SCREW SOCKET SET
7512257
$7,34 Unit Price incl. VAT
13
WHEEL CARRIER
1543023
Not Available
14
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
15
WASHER-.270X1.25X.060 FL-Y
7558221
$4,19 Unit Price incl. VAT
16
STRAP LIMITER
5410587
Not Available
17
BOLT(10)
7512247
Not Available
18
SPACER CAM
5333133
Not Available
19
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
20
BUSHING
5430537
$7,34 Unit Price incl. VAT
21
SHOCK R.TORQUE ARM
7041331
Not Available
22
BUSHING R.SHOCK
5333030
Not Available
23
SCR-HH-5/16-18X1.75 GR5 ZY3
7512329
$7,34 Unit Price incl. VAT
24
SHAFT MTG REAR
5020570
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
