1
Engine displacement
500
2
Year
1994
3
Trim
500 EFI - 0942774
4
Parts Catalog

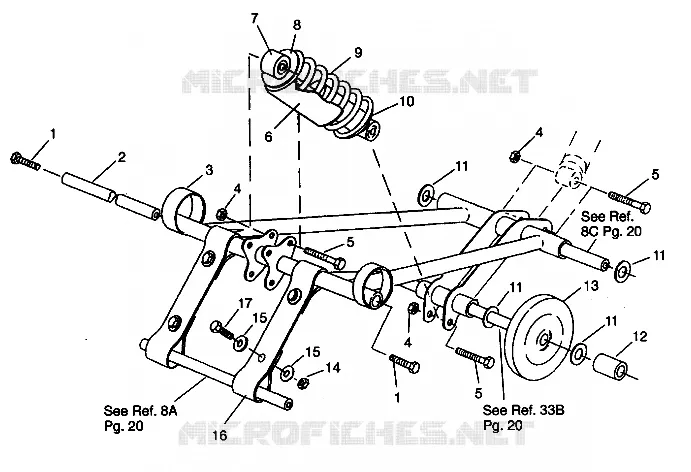

FRONT TORQUE ARM 500 EFI 0942774 AND EFI SKS 0942574 (4924982498023A)
5
Parts Diagram
Parts Catalog
SUSPENSION ASSEMBLY EFI SKS 0942574 (4924982498021A)
by
REAR TORQUE ARM 500 EFI 0942774 AND EFI SKS 0942574 (4924982498024A)
FRONT TORQUE ARM 500 EFI 0942774 AND EFI SKS 0942574 (4924982498023A)
1
1
2
3
4
4
4
5
5
5
6
7
8
9
10
11
11
11
11
12
13
14
15
15
16
17
1
1
2
3
4
4
4
5
5
5
6
7
8
9
10
11
11
11
11
12
13
14
15
15
16
17
1
BOLT NYLOC BLACK(10) Substituted by 7515432 (650 Only)
7515493
Not Available
2
SHAFT MOUNTING
5010149
Not Available
3
ARM FR.TORQUE BLK.
1540805067
Not Available
4
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
5
SCREW
7515415
$2,09 Unit Price incl. VAT
6
SHIELD SPRING
5430671
$47,24 Unit Price incl. VAT
7
SHOCK CTR.SUSP.
7041281
Not Available
8
RETAINER SPRING COIL
5220225
$19,94 Unit Price incl. VAT
9
SPRING-SHOCK SUSP
7041140
Not Available
10
RETAINER-SPRING
5210953
$11,54 Unit Price incl. VAT
11
BUSHING-.781 X1.250X.060-Y
7556301
$6,29 Unit Price incl. VAT
12
SPACER OUTER
5332784
Not Available
13
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
14
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
15
WASHER-.328X1.25X16GA FL-Y
7555716
$3,14 Unit Price incl. VAT
16
STRAP LIMITER
5410397
Not Available
17
SCR-5/16-18X1-HX/FLG-GR5-Y
7515307
$7,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
