1
Engine displacement
500
2
Year
1994
3
Trim
500 EFI - 0942774
4
Parts Catalog

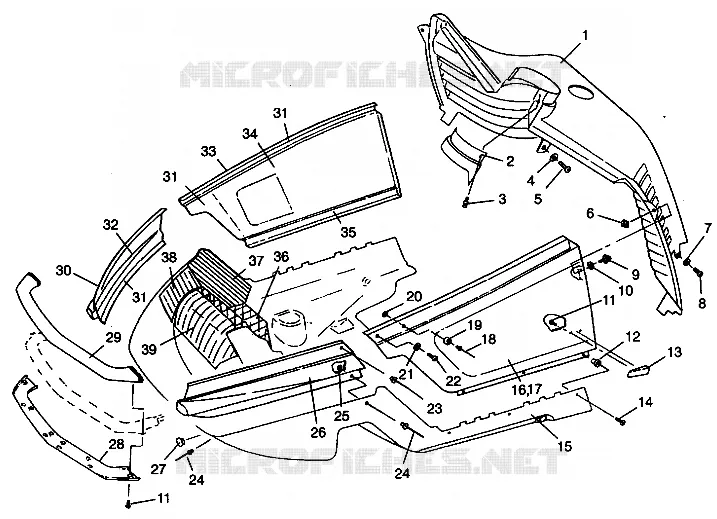

NOSEPAN ASSEMBLY 500 EFI 0942774 AND EFI SKS 0942574 (4924982498003A)
5
Parts Diagram
Parts Catalog
SEAT GAS TANK ASSEMBLY 500 EFI 0942774 AND EFI SKS 0942574 (4924982498002A)
by
NOSEPAN ASSEMBLY 500 EFI 0942774 AND EFI SKS 0942574 (4924982498004A)
NOSEPAN ASSEMBLY 500 EFI 0942774 AND EFI SKS 0942574 (4924982498003A)
1
2
3
4
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
24
25
26
27
28
29
30
31
31
31
32
33
34
35
36
37
38
39
1
2
3
4
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
24
25
26
27
28
29
30
31
31
31
32
33
34
35
36
37
38
39
1
CONSOLE BASIC
5431467
Not Available
2
COVER CONSOLE
5431535
Not Available
3
RIVET PLASTI-LOC
7621509
$2,09 Unit Price incl. VAT
4
WASHER(10) Substituted by 7558301
7555776
7558301
$2,09 Unit Price incl. VAT
5
SCREW(10)
7512252
Not Available
6
NUT RETAINER(10)
7542138
Not Available
7
WASHER-.20X.67X.048-Y
7555792
$9,44 Unit Price incl. VAT
8
SCREW(10)
7512069
Not Available
9
RETAINER HOODLATCH
5431502
$23,09 Unit Price incl. VAT
10
WASHER RUBBER(10)
7555884
$9,44 Unit Price incl. VAT
11
SCR-PHPHD-10-24X0.5 GR2 ZY3
7512068
$4,19 Unit Price incl. VAT
12
NUT WELL
7541923
$10,49 Unit Price incl. VAT
13
BUMPER SIDE PANEL Substituted by 5432456
5431662
Not Available
14
SCREW
7512279
$1,56 Unit Price incl. VAT
15
NOSEPAN BLK.
5431471070
Not Available
16
PANEL SIDE LH BLACK Substituted by 5431742-177
5431468177
Not Available
17
FOAM LH SIDEPANEL Substituted by 5811076
5810933
Not Available
18
RIVET(50)
7621315
Not Available
19
BUMPER RUBBER STOP Substituted by 5411440
5410843
Not Available
20
RIVET BURR(50)
7555756
Not Available
21
WASHER HI-TEMP (10)
7555886
Not Available
22
SCR-1/4-20X5/8 TXTR GR5 P-5-Y
7515148
$9,44 Unit Price incl. VAT
23
RIVET 3/16(.063-.250)ST-ST-LF-B
7621472
$2,09 Unit Price incl. VAT
24
RIVET
7621467
$2,09 Unit Price incl. VAT
25
WASHER FLAT
7558212
$1,56 Unit Price incl. VAT
26
BUMPERSIDE LH BLK.
5431492177
Not Available
27
PLUG NOSEPAN HOLE
5410820
$26,24 Unit Price incl. VAT
28
COVER F.BUMP.BOTT.BLK. Substituted by 5431481
5431481177
Not Available
29
COVER F.BUMP.TOP BLK.
5431480177
Not Available
30
ASM. SIDE BUMP/FOIL RH BLACK METALLIC
2610006177
Not Available
31
TAPE FOIL 215 CM.(85 IN.) (Service)
8360043215
Not Available
32
FOIL MID.BUMPER Substituted by 5811086
5810932
Not Available
33
PANEL RH SIDE/FOIL BLK. Substituted by 2610008-177 (Incl. 35)
2610005177
Not Available
34
FOAM RH SIDEPANEL
5810934
Not Available
35
TAPE FOIL 100 CM. (Service)
8360044100
Not Available
36
FOIL R.SHOCK TOWER
5810938
Not Available
37
FOIL RH PAN
5810908
Not Available
38
FOIL SIDE.SHOCKTOWER
5810939
Not Available
39
FOIL F.SHOCK TOWER
5810937
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
