1
Engine displacement
500
2
Year
1994
3
Trim
500 EFI - 0942774
4
Parts Catalog
STEERING
5

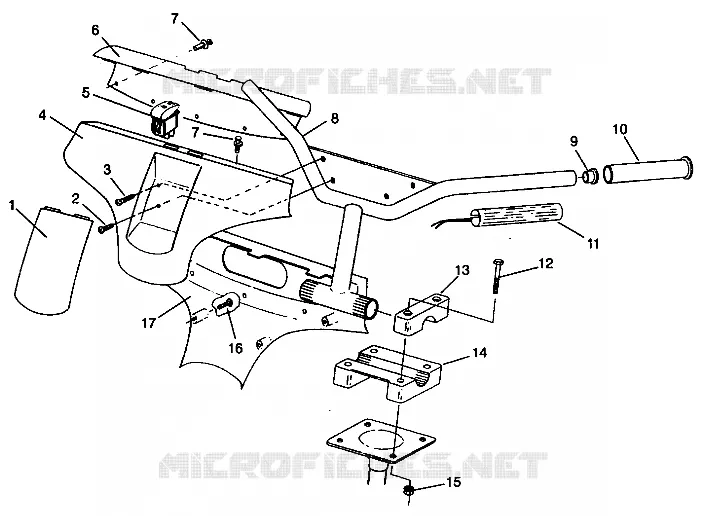

Parts Diagram
Parts Catalog
HOOD ASSEMBLY 500 EFI 0942774 AND EFI SKS 0942574 (4924982498005A)
by
STEERING ASSEMBLY 500 EFI 0942774 AND EFI SKS 0942574 (4924982498012A)
STEERING
1
2
3
4
5
5
5
5
6
7
7
8
9
10
11
12
13
14
15
16
17
1
2
3
4
5
5
5
5
6
7
7
8
9
10
11
12
13
14
15
16
17
1
COVER REV.SHIFT
5431530
Not Available
2
SCREW(10)
7512252
Not Available
3
BOLT(10) Substituted by 7515197
7512286
7515197
$2,09 Unit Price incl. VAT
4
COVER H#BAR UPPER
5431490
Not Available
5
SWITCH THUMBWARMER
4110138
$48,71 Unit Price incl. VAT
5
SWITCH H#BAR HI/LO
4110137
$48,71 Unit Price incl. VAT
6
COVER H#BAR TOP
5431620
Not Available
7
RIVET PLASTI-LOC
7621509
$2,09 Unit Price incl. VAT
8
H#BAR ADJUSTABLE BLK. Substituted by 1823169-067 (Adj.)
1843038067
Not Available
9
CAPLUG(10)
7080467
Not Available
10
GRIP H#BAR BLACK Substituted by 5432634
5410272067
$52,49 Unit Price incl. VAT
11
GRIP-HEATER ASM HI/LOW
2460311
$115,49 Unit Price incl. VAT
12
BOLT
7515144
Not Available
13
BLOCK H#BAR UPPER BLK.
5630382067
Not Available
14
BLOCK HANDLEBAR BLACK
5630187067
$73,49 Unit Price incl. VAT
15
NUT(10)
7542124
7542122
$2,09 Unit Price incl. VAT
16
SCREW(10)
7511840
Not Available
17
COVER H#BAR LOWER
5431491
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
