1
Engine displacement
800
2
Year
2005
3
Trim
SPORTSMAN 800 EFI - A05MH76AC/AU/AW
4
Parts Catalog

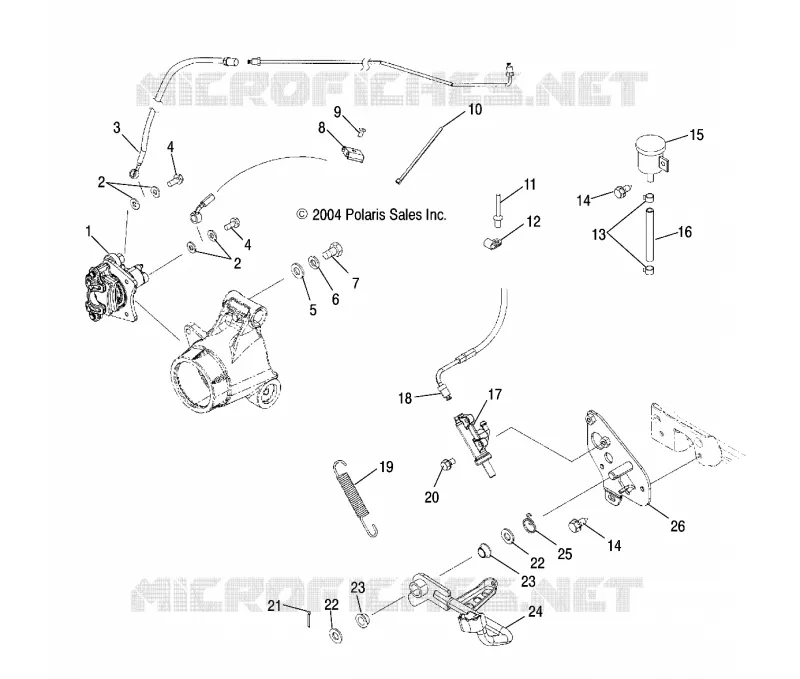

MASTER CYLINDER, REAR AND FOOT PEDAL
5
Parts Diagram
Parts Catalog
FUEL TANK
by
A-ARM AND STRUT MOUNTING
MASTER CYLINDER, REAR AND FOOT PEDAL
-
-
1
2
2
-
-
4
4
5
6
7
8
9
10
11
12
13
14
14
15
16
17
18
19
20
21
22
22
23
23
24
25
26
-
1
1
2
-
-
4
5
5
5
5
5
5
6
7
8
8
9
9
9
9
10
10
10
10
11
12
-
Kit Rear Brake Line (Incl. 16 17 18)
2202709
$167,99 Unit Price incl. VAT
-
Kit Line Brake Rear From J/B [Hand]
2202644
$188,99 Unit Price incl. VAT
1
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
2
SEAL
5410988
$9,44 Unit Price incl. VAT
3
Kit Line Brake Rear From J/B [Hand]
2202644
$188,99 Unit Price incl. VAT
3
Line Brake Hardline
1910805
Not Available
4
BOLT-BANJO 10MMX1.00-6G
1910499
$10,49 Unit Price incl. VAT
5
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
6
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
7
SCREW CAP(10) [CALIPER MOUNTING]
7512365
$2,09 Unit Price incl. VAT
8
CLIP-RETAINING DUAL .250# LINE
7670126
$9,44 Unit Price incl. VAT
9
SCR-#10-24X5/8PN/TR-RDTORX-Y
7517756
$2,09 Unit Price incl. VAT
10
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
11
RIVET-POP3/16(.251-.375)AL-B
7621462
$2,09 Unit Price incl. VAT
12
CLAMP-CABLE NYLON 5/16#
7080960
$9,44 Unit Price incl. VAT
13
HOSE CLAMP RED
7080003
$2,09 Unit Price incl. VAT
14
SCR-1/4-20X5/8 TAP/R-Y
7517386
$2,09 Unit Price incl. VAT
15
Reservoir Brake Rear
1930854
$68,24 Unit Price incl. VAT
16
HOSE RES. 1/4 ID 5.78 LG
1910438
$15,74 Unit Price incl. VAT
17
Master Cylinder Brake Rear (If built after 1/05/04)
1910790
1911113
$325,49 Unit Price incl. VAT
18
Line Rear Brake Foot
1910766
$167,99 Unit Price incl. VAT
19
Spring Gear Selector Lockout
7042075
$83,99 Unit Price incl. VAT
20
Screw
7515158
$9,44 Unit Price incl. VAT
21
PIN COTTER
7661401
$1,56 Unit Price incl. VAT
22
WASHER-.510X.840X.031 Y
7555919
$7,34 Unit Price incl. VAT
23
BUSHING PIVOT PEDAL
5433189
$7,34 Unit Price incl. VAT
24
Rod Brake
1013415067
Not Available
25
SPRING-TORSION BRAKE
7041750
$16,79 Unit Price incl. VAT
26
Mount Brake
1013414067
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
