1
Engine displacement
800
2
Year
2005
3
Trim
SPORTSMAN 800 EFI - A05MH76AC/AU/AW
4
Parts Catalog
REAR CAB SEAT
5

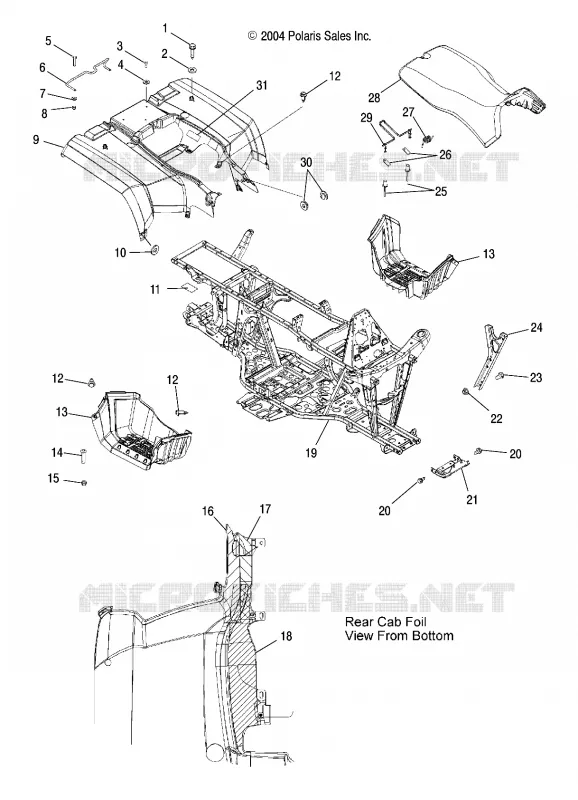

Parts Diagram
Parts Catalog
BRAKE LINES, FRONT
by
FRONT CAB
REAR CAB SEAT
1
2
3
4
5
6
7
8
9
9
9
9
9
10
11
12
12
12
13
13
13
13
14
15
16
17
18
19
20
20
21
22
23
24
25
26
27
28
28
28
29
30
31
1
SCR-#14X3/4 LG HI/LO/TAPER-M
7512095
$9,44 Unit Price incl. VAT
2
WASHER NYLON
7555798
$1,56 Unit Price incl. VAT
3
SCREW-#10X3/4-HI/LO-PN-T25 TRX-M
7512026
$2,09 Unit Price incl. VAT
4
WASHER
7556034
$4,19 Unit Price incl. VAT
5
BOLT
7511930
$4,19 Unit Price incl. VAT
6
Retainer Seat Latch
5246076
Not Available
7
WASHER-.20X.67X.048-Y
7555792
$9,44 Unit Price incl. VAT
8
NUT-NYLOC 10-24 Y
7541925
$1,56 Unit Price incl. VAT
9
Cab Rear Black Metallic [AU][If built after 7/28/04]
5436108177
5436319-177
$734,99 Unit Price incl. VAT
9
Cab Rear NBU Camo (AC)(AT)
5435664455
Not Available
9
Cab Rear Black Metallic [AU][If built before 7/28/04]
5435363177
5436319-177
$734,99 Unit Price incl. VAT
9
Cab Rear Black [AW][If built before 7/28/04]
5435363070
Not Available
9
Cab Rear Black [AW][If built after 7/28/04]
5436108070
Not Available
10
WASHER
7558403
$9,44 Unit Price incl. VAT
11
DECAL HITCH 1500 LBS.
7170509
$13,64 Unit Price incl. VAT
12
RIVET-TUFLOK .315-.325X.787 ?
7661855
$2,09 Unit Price incl. VAT
13
Footwell Black RH
5435355070
$430,49 Unit Price incl. VAT
13
Footwell Black LH
5435354070
$430,49 Unit Price incl. VAT
14
SCR-1/4-20X1 TRX TRHD GR5-M
7517230
$2,09 Unit Price incl. VAT
15
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
16
Foil Rear Cab Front Top
5812703
Not Available
17
Foil Rear Cab Front Bottom
5812702
Not Available
18
Foil Cab Rear
5812701
Not Available
19
Frame Main Black
1014951067
Not Available
20
SCR-5/16-18X3/4 TFM HW T/R-Y
7515399
$2,09 Unit Price incl. VAT
21
Bracket Bumper Lower
5245767067
Not Available
22
NUT NYLOK FLANGED 1/4 [INTL]
7542153
$3,14 Unit Price incl. VAT
23
SCREW
7512283
$7,34 Unit Price incl. VAT
24
Brace Frame
5244751067
Not Available
25
BLIND RIVET(50)
7621403
$2,09 Unit Price incl. VAT
26
Bracket Lever Retainer
5211033
$52,49 Unit Price incl. VAT
27
SPRING LATCH
7041370
$17,84 Unit Price incl. VAT
28
Asm. Seat Black [AW][AU]
2683433070
2684882-070
$824,24 Unit Price incl. VAT
28
Asm. Seat Black
2683661070
2685076-070
$824,24 Unit Price incl. VAT
28
Covering Seat Black
2683434070
2684045
$272,99 Unit Price incl. VAT
29
Latch Seat
1040387
$89,24 Unit Price incl. VAT
30
Grommet Rubber Mount
5412623
$4,19 Unit Price incl. VAT
31
Decal Filter Cleaning
7172921
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
