1
Engine displacement
800
2
Year
2005
3
Trim
SPORTSMAN 800 EFI - A05MH76AC/AU/AW
4
Parts Catalog

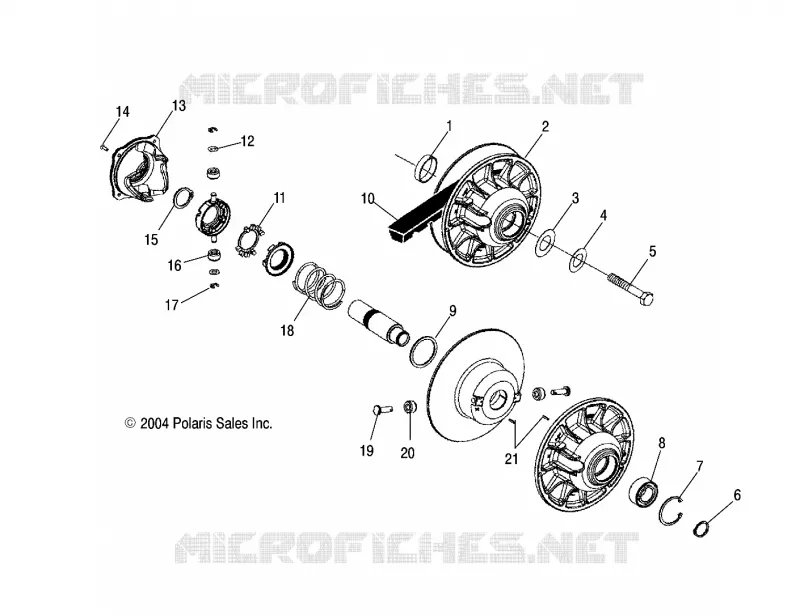

DRIVEN CLUTCH
5
Parts Diagram
Parts Catalog
DRIVE CLUTCH
by
THROTTLE BODY MOUNTING
DRIVEN CLUTCH
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
14
15
16
17
18
1
BUSHING-.906 X 1 3/8 X 16 GA-Y
7556120
$2,09 Unit Price incl. VAT
2
Asm. Driven Clutch [Incl. 6-9 11 12 14-17 19-21](If built before 1/01/05)
1322515
$923,99 Unit Price incl. VAT
2
Asm. Driven Clutch [Incl. 6-9 11 12 14-17 19-21](If built after 1/01/05)
1322550
$923,99 Unit Price incl. VAT
3
Washer Domed (If built after 1/10/04)
5248227
5250562
$4,19 Unit Price incl. VAT
4
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
5
SCR-HH-5/16-18X3.75 GR5 ZY3
7515382
$4,19 Unit Price incl. VAT
6
RING RETAINING
3234205
$20,99 Unit Price incl. VAT
7
Ring Retaining
3234204
$14,16 Unit Price incl. VAT
8
BEARING BALL ANGULAR CONTACT
3234203
$40,94 Unit Price incl. VAT
9
Washer Thrust
3234200
$13,64 Unit Price incl. VAT
10
Belt Drive EBS
3211106
3211161
$192,14 Unit Price incl. VAT
11
DAMPENER SPIDER
3234206
2206554
$115,49 Unit Price incl. VAT
12
Washer Thrust
3234196
7556226
$10,49 Unit Price incl. VAT
13
Asm. Cam
3234234
Not Available
14
Screw Cap
3234192
$8,39 Unit Price incl. VAT
15
Ring Retaining
3234194
7710522
$25,19 Unit Price incl. VAT
16
ROLLER CLUTCH TORLON
3234207
$89,24 Unit Price incl. VAT
17
Ring Retaining [If built before 8/07/06]
3234195
7710523
$5,24 Unit Price incl. VAT
18
Spring Compression Green/White
3234233
Not Available
19
PIN ROLLER
3234201
$31,49 Unit Price incl. VAT
20
ROLLER CLUTCH
3234197
$89,24 Unit Price incl. VAT
21
SPRING CLUTCHPIN SPRING SLOTTED
3234202
$7,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
