1
Engine displacement
800
2
Year
2005
3
Trim
SPORTSMAN 800 EFI - A05MH76AC/AU/AW
4
Parts Catalog

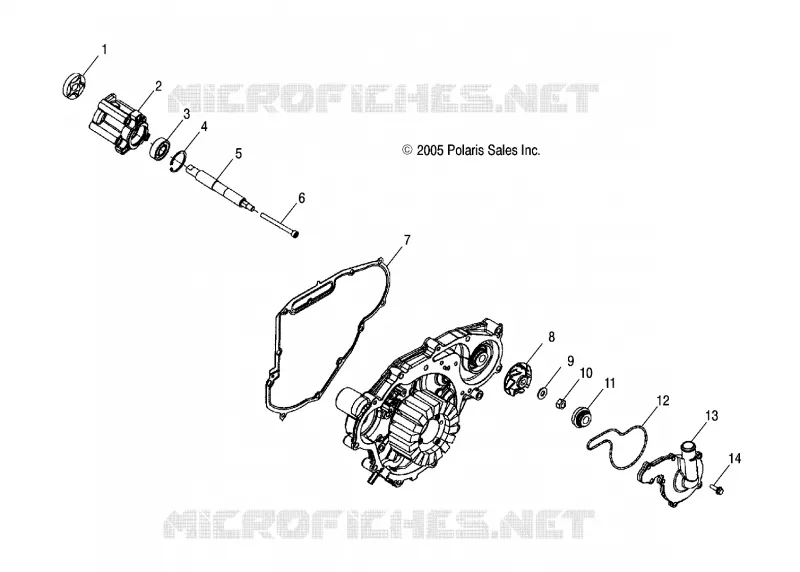

OIL PUMP AND WATER PUMP
5
Parts Diagram
Parts Catalog
WINCH
by
STEERING POST
OIL PUMP AND WATER PUMP
-
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
2
3
4
5
6
6
6
7
8
9
10
11
12
13
14
-
Kit Oil Pump [Incl. 1-6]
2202699
2203012
$356,99 Unit Price incl. VAT
1
Asm. Gerotor
1202588
1204577
$120,74 Unit Price incl. VAT
2
Housing Oil Pump
5133852
2203012
$356,99 Unit Price incl. VAT
3
Bearing Ball
3584404
Not Available
4
RING RETAINING
7710531
$9,44 Unit Price incl. VAT
5
Shaft Oil/Water Pump
5133948
Not Available
6
SCR-M6X1.0X70MM SOC/CAP-Y/D
7517807
$9,44 Unit Price incl. VAT
7
Gasket Cover Mag
5812511
5812936
$68,24 Unit Price incl. VAT
8
IMPELLER WATER PUMP
5433684
$57,74 Unit Price incl. VAT
9
WASHER
7555874
$4,19 Unit Price incl. VAT
10
NUT-HEX M8X1.25 NYLOCK-SS [S99CR]
7546804
$2,09 Unit Price incl. VAT
11
SEAL WATER PUMP
3610075
$131,24 Unit Price incl. VAT
12
SEAL WATER PUMP
5812571
$14,69 Unit Price incl. VAT
13
Cover Water Pump
5631389
Not Available
14
SCREW-M6X1.0X20-HX/FL-Y/D
7516822
$4,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
