1
Engine displacement
700
2
Year
2004
3
Trim
A04CH68AC SPORTSMAN 700 - A04CH68AC/AF/AH/AJ/AT/AV
4
Parts Catalog
INLET EXHAUST
5
Parts Diagram
Parts Catalog
ELECTRICAL/TAILLIGHT
by
EXHAUST SYSTEM
INLET EXHAUST
1
2
3
4
5
6
6
7
8
9
10
11
11
12
13
13
13
14
15
16
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
ASM. ARM ROCKER
1202169
$204,74 Unit Price incl. VAT
2
Pushrod
5132402
5138254
$99,74 Unit Price incl. VAT
3
Kit Camshaft
2202110
$850,49 Unit Price incl. VAT
4
PLATE THRUST
5244286
$99,74 Unit Price incl. VAT
5
SCREW-M6X12 TORX DR FH
7517598
$19,94 Unit Price incl. VAT
6
Kit Gear Set
2202145
Not Available
7
Spring Compression
7041999
Not Available
8
WASHER SPRING
7556183
$17,84 Unit Price incl. VAT
9
SCREW
7517865
$20,99 Unit Price incl. VAT
10
Lifter Valve
5134152
5137206
$68,24 Unit Price incl. VAT
11
Valve Exhaust
5133141
Not Available
12
Valve Intake
5132696
5137265
$73,49 Unit Price incl. VAT
13
Seal Valve Guide
5411895
$15,74 Unit Price incl. VAT
14
Spring Valve
7041565
Not Available
15
Retainer Spring
5131413
$41,99 Unit Price incl. VAT
16
RETAINER LOCK
5910042
$10,49 Unit Price incl. VAT

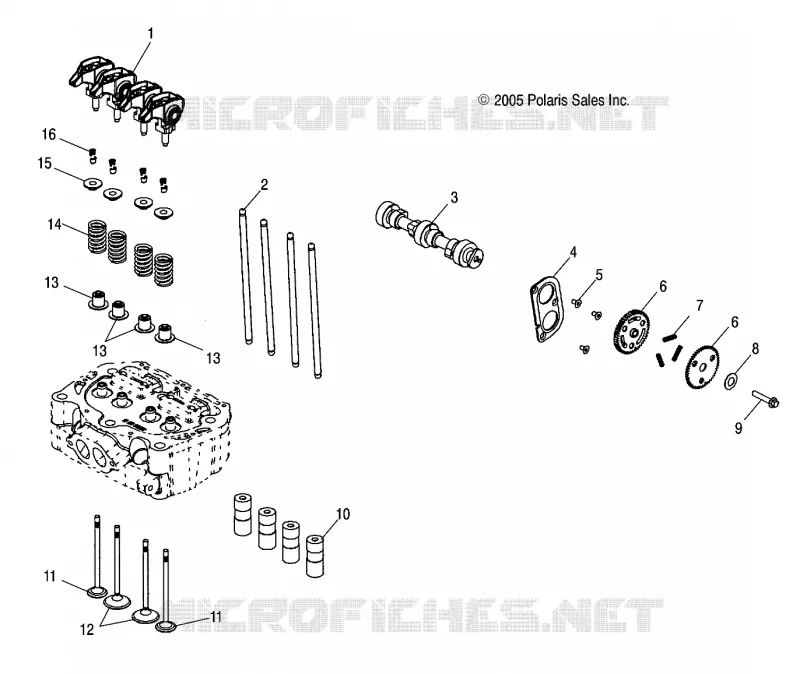

Find the detailed INLET EXHAUST POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
