1
Engine displacement
700
2
Year
2004
3
Trim
A04CH68AC SPORTSMAN 700 - A04CH68AC/AF/AH/AJ/AT/AV
4
Parts Catalog

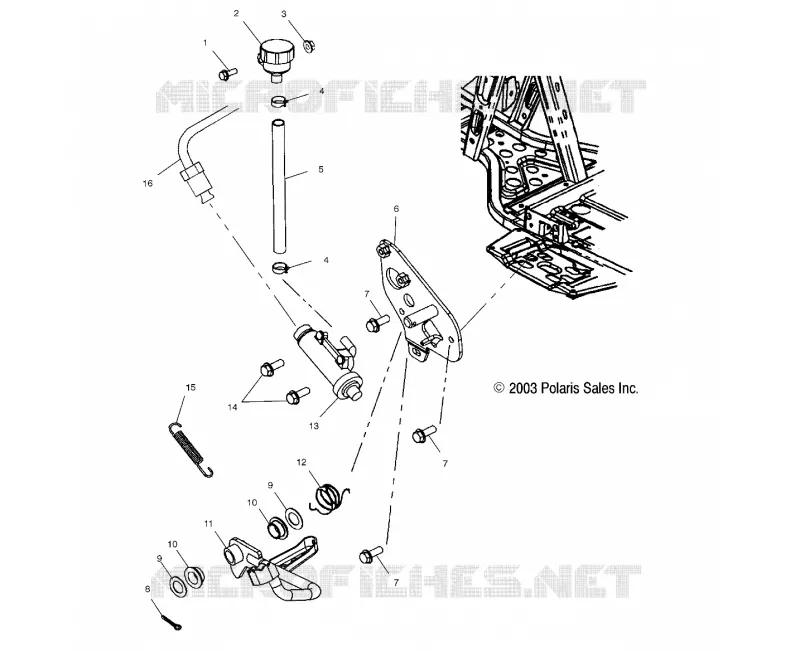

REAR MASTER CYLINDER FOOT PEDAL
5
Parts Diagram
Parts Catalog
REAR CALIPER
by
CONTROLS
REAR MASTER CYLINDER FOOT PEDAL
1
2
3
4
4
5
6
7
7
7
8
9
9
10
10
11
12
13
14
15
16
1
1
2
2
3
4
5
1
BOLT(10)
7512240
$7,34 Unit Price incl. VAT
2
Reservoir Brake Rear
1930854
$68,24 Unit Price incl. VAT
3
NUT NYLOK FLANGED 1/4 [INTL]
7542153
$3,14 Unit Price incl. VAT
4
HOSE CLAMP RED
7080003
$2,09 Unit Price incl. VAT
5
HOSE RES. 1/4 ID 5.78 LG
1910438
$15,74 Unit Price incl. VAT
6
Mount Brake
1013414067
Not Available
7
SCR-1/4-20X5/8 TAP/R-Y
7517386
$2,09 Unit Price incl. VAT
8
PIN COTTER
7661401
$1,56 Unit Price incl. VAT
9
WASHER-.510X.840X.031 Y
7555919
$7,34 Unit Price incl. VAT
10
BUSHING PIVOT PEDAL
5433189
$7,34 Unit Price incl. VAT
11
Rod Brake
1013415067
Not Available
12
SPRING-TORSION BRAKE
7041750
$16,79 Unit Price incl. VAT
13
CYLINDER MASTER BRAKE REAR
1910301
1911113
$325,49 Unit Price incl. VAT
14
Screw
7515158
$9,44 Unit Price incl. VAT
15
Spring Gear Selector Lockout
7042075
$83,99 Unit Price incl. VAT
16
Line Rear Brake Foot
1910429
2202709
$167,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
