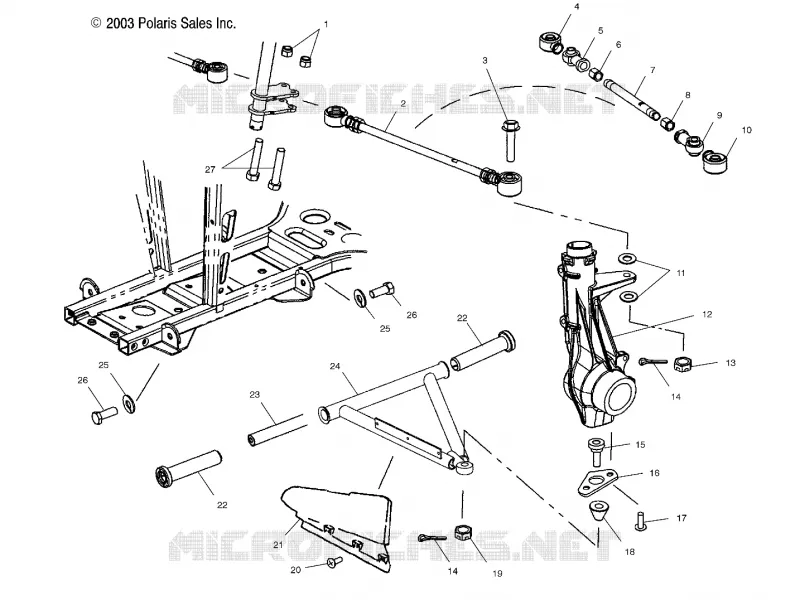

WISHBONES FOR A04CH68AC SPORTSMAN 700 - A04CH68AC/AF/AH/AJ/AT/AV FROM 2004

WISHBONES

1

NUT-3/8-24(NYLOK)-Y

7542439

$2,09 Unit Price incl. VAT

2

Asm. Tie Rod [Incl. 3-9]

1820805

$246,74 Unit Price incl. VAT

3

SCR-HXFL-M10X1.25X65 10.9 ZY3

7517909

$10,49 Unit Price incl. VAT

4

Boot Seal Rod End

5411291

$20,99 Unit Price incl. VAT

5

Rod End

7061034

$115,49 Unit Price incl. VAT

6

NUT-1/2-20 HX JM-Y

7542711

$4,19 Unit Price incl. VAT

7

Tie Rod

5020926

$83,99 Unit Price incl. VAT

8

NUT-1/2-20 LH JAM

7547028

$4,19 Unit Price incl. VAT

9

ROD END [INCL. 1]

7061054

$104,99 Unit Price incl. VAT

10

BOOT SEAL ROD END

5411920

$20,99 Unit Price incl. VAT

11

WASHER-FL 10.7X21.9X2.5-Y

7556099

$3,14 Unit Price incl. VAT

12

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

13

NUT-M10X1.25-HX-LOCK-Y(10)

7547177

$1,56 Unit Price incl. VAT

14

PIN COTTER

7661203

$2,09 Unit Price incl. VAT

15

BALL-JOINT 52 DEG ATV (If built after 11/01/00)

7080927

$52,49 Unit Price incl. VAT

16

BRACKET-BALL JOINT

5211121

$62,99 Unit Price incl. VAT

17

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$2,09 Unit Price incl. VAT

18

BOOT RUBBER

5410548

$9,44 Unit Price incl. VAT

19

NUT-3/8-24 HX CA GR5-Y

7542438

$3,14 Unit Price incl. VAT

20

SCR-10-24X1/2 PHTXTRIRD SEMS-Y

7512084

$2,09 Unit Price incl. VAT

21

Shield CV Front RH Black

5435029070

$47,24 Unit Price incl. VAT

21

Shield CV Front LH Black

5435028070

$47,24 Unit Price incl. VAT

22

Bushing A-Arm Long

5434551

$9,44 Unit Price incl. VAT

23

Shaft A-Arm

5133806

$52,49 Unit Price incl. VAT

24

Kit A-Frame RH [Incl. 14 22 23 25 26]

2202275

$241,49 Unit Price incl. VAT

24

Kit A-Frame LH [Incl. 14 22 23 25 26]

2202274

$241,49 Unit Price incl. VAT

25

WASHER-LOCK(10)

7571611

$6,29 Unit Price incl. VAT

26

SCREW

7512492

$2,09 Unit Price incl. VAT

27

SCREW

7515415

$2,09 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
