1
Engine displacement
700
2
Year
2004
3
Trim
A04CH68AC SPORTSMAN 700 - A04CH68AC/AF/AH/AJ/AT/AV
4
Parts Catalog

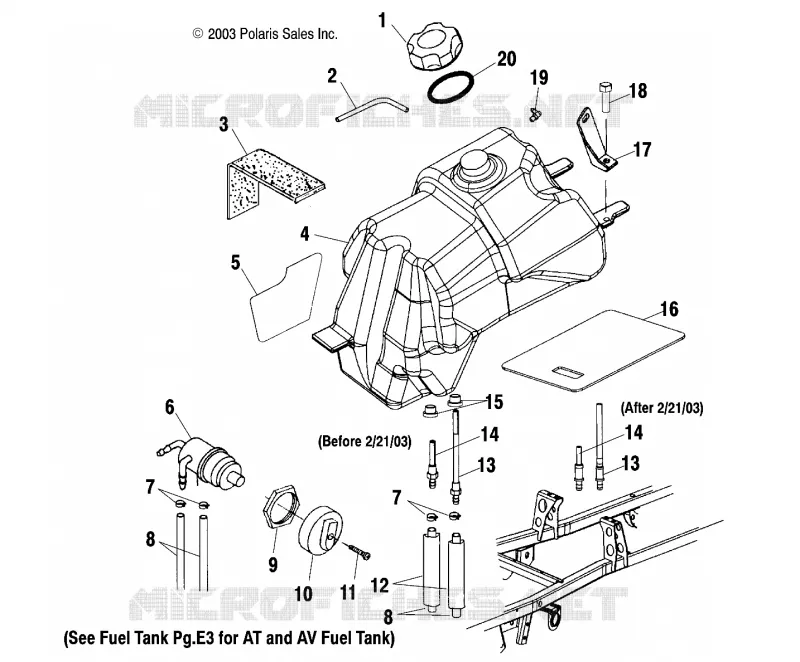

FUEL TANK
5
Parts Diagram
Parts Catalog
CRANKCASE
by
CRANKSHAFT AND PISTON
FUEL TANK
1
2
3
4
4
5
6
7
7
8
8
9
10
11
12
13
13
13
13
14
14
14
14
15
16
17
17
18
19
20
1
1
2
2
3
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
1
Cap Gas Tank
5433687
5450389
$36,74 Unit Price incl. VAT
2
HOSE-POLY CLEAR 3/16 OD 1/8 ID
8360009600
$83,99 Unit Price incl. VAT
3
Seal Foam
5812265
$52,49 Unit Price incl. VAT
4
Asm. Fuel Tank [Incl. 13 14 19](If built after 2/21/03)
2520363
Not Available
4
Asm. Fuel Tank [Incl. 15 16 22]
2520203
Not Available
5
Foil Fuel Tank
5182004
Not Available
6
VALVE 3-WAY (If built before 1/14/00)
7052161
$83,99 Unit Price incl. VAT
7
HOSE CLAMP RED
7080003
$2,09 Unit Price incl. VAT
8
FUEL LINE-1/4 ID (SVC) 600 CM [BULK]
8450040600
$136,49 Unit Price incl. VAT
9
NUT FUELVALVE ATV (If built before 1/14/00)
5432733
Not Available
10
KNOB FUEL VALVE (If built before 1/14/00)
5432559
$20,99 Unit Price incl. VAT
11
SCR-4MMX.7X10MM-PH/PN Y LOC
7517505
$3,14 Unit Price incl. VAT
12
SHEATH/FOIL LAM 65CM.
845008065
$120,74 Unit Price incl. VAT
13
Fitting Main Press In [If built after 3/01/03][For use with 2520359]
7052347
Not Available
13
Fitting Fuel Outlet Main
7052150
$52,49 Unit Price incl. VAT
14
Fitting Fuel Outlet Reserve
7052346
$52,49 Unit Price incl. VAT
14
Fitting Fuel Outlet Reserve
7052149
$41,99 Unit Price incl. VAT
15
GROMMET FLANGED
7052362
$13,64 Unit Price incl. VAT
16
Foil
5812005
Not Available
17
Bracket Mounting Rear RH
5222155
Not Available
17
Bracket Mounting Rear LH
5222154
Not Available
18
SCR-1/4-20X1.00 TR/TX-M
7517685
$3,14 Unit Price incl. VAT
19
Vent Tank
5431053
$47,24 Unit Price incl. VAT
20
Gasket
5812123
$10,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
