1
Engine displacement
500
2
Year
1994
3
Trim
500 EFI - 0942774
4
Parts Catalog
TUNNEL 500 EFI 0942774 AND EFI SKS 0942574 (4924982498001A)
5
Parts Diagram
Parts Catalog
EFI PARTS 500 EFI 0942774 AND EFI SKS 0942574 (4924982498040A)
by
HOOD/HEADLIGHT ASSEMBLY 500 EFI 0942774 AND EFI SKS 0942574 (4924982498006A)

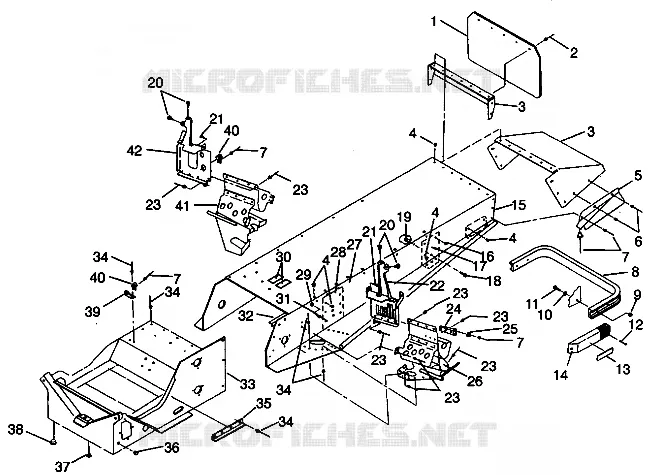

TUNNEL 500 EFI 0942774 AND EFI SKS 0942574 (4924982498001A)
1
2
3
3
3
3
3
3
3
3
4
4
4
4
5
5
5
5
6
7
7
7
7
8
8
8
8
9
10
11
12
13
14
15
15
15
15
16
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
18
19
20
20
21
21
22
23
23
23
23
23
23
23
24
25
26
27
28
29
30
31
32
33
34
34
34
34
35
36
37
38
39
40
40
41
42
1
2
3
3
3
3
3
3
3
3
4
4
4
4
5
5
5
5
6
7
7
7
7
8
8
8
8
9
10
11
12
13
14
15
15
15
15
16
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
18
19
20
20
21
21
22
23
23
23
23
23
23
23
24
25
26
27
28
29
30
31
32
33
34
34
34
34
35
36
37
38
39
40
40
41
42
1
FLAP SNOW SILVER Substituted by 5410394-1106 (400)
5410394
5410394-1038
$194,24 Unit Price incl. VAT
2
POP RIVET(50)
7621418
$2,09 Unit Price incl. VAT
3
CLOSE-OFF ASM REAR BLK. Substituted by 1012232-067 (SKS)
1011694067
Not Available
3
PANEL TUNNEL BACK Substituted by 5220478-067
5220478
Not Available
4
RIVET (50)
7661829
Not Available
5
SKIRT RH SNOW BLK. Substituted by 5431645-070
5431645
Not Available
5
SKIRT LH SNOW BLK. Substituted by 5431627-070
5431627
Not Available
6
RIVET 3/16(.063-.250)ST-ST-LF-B
7621472
$2,09 Unit Price incl. VAT
7
RIVET-POP 3/16(.126-.250)-ST-B
7621432
$2,09 Unit Price incl. VAT
8
BUMPER REAR BLK. (XLT & SP)
5224334067
Not Available
8
BUMPER R.SKS EFI (SKS)
5224349067
Not Available
9
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
10
WASHER [INTL]
7558301
$2,09 Unit Price incl. VAT
11
BOLT(10)
7512240
$7,34 Unit Price incl. VAT
12
SCREW(10)
7511863
$3,66 Unit Price incl. VAT
13
REFLECTOR RED
2670070
$15,95 Unit Price incl. VAT
14
CAP BUMPER BLK.
5430930070
Not Available
15
TUNNEL ASM BLK(94CLASSIC) (CL)
1011933
Not Available
15
TUNNEL ASM BLK (SKS) (SKS)
1011980
Not Available
16
RIVET (50)
7661825
$1,04 Unit Price incl. VAT
17
BRKT RH.REAR SUSP. (SKS)
1011906067
Not Available
17
BRKT RH R.SUSP.
1011858067
Not Available
17
BRKT LH R.SUSP
1011857067
Not Available
17
BRKT LH.REAR SUSP (SKS)
1011905067
Not Available
18
BOLT BLACK
7515494
$5,24 Unit Price incl. VAT
19
NUT FLANGE
7542423
$7,34 Unit Price incl. VAT
20
BUMPER HOOD
5410768
$4,82 Unit Price incl. VAT
21
SCREW(10)
7512057
Not Available
22
MT CONSOLE LH
1011951067
$56,90 Unit Price incl. VAT
23
RIVET INTERLOCK B(50)
7661638
$2,09 Unit Price incl. VAT
24
SUPPORT BUMPERSIDE BLK.
5240294067
Not Available
25
STOP BUMPER
5410826
Not Available
26
FOOTREST ASM LH BLK. Substituted by 1012544
1011934
Not Available
27
NUT SERT(10)
7541938
Not Available
28
BRACKET SUSPENSION FRONT BLACK
5211323067
$47,24 Unit Price incl. VAT
29
SNAP-MALE(10)
7080227
Not Available
30
DECAL TOP TUNNEL STRIP
7073978
Not Available
31
RIVET(50)
7621222
$1,04 Unit Price incl. VAT
32
BRACE REINF.TUNNEL
5240242
Not Available
33
BULKHEAD EFI (Touring)
1011948067
Not Available
34
RIVET-3/16-.090-.290
7661637
$2,09 Unit Price incl. VAT
35
GUARD ADAPTER GUIDE
5222857
$26,24 Unit Price incl. VAT
36
PLUG-HOLE
7080416
$12,59 Unit Price incl. VAT
37
PLUG-HOLE
7080398
$10,49 Unit Price incl. VAT
38
BUSHING OPEN/CLOSE(10)
7080399
Not Available
39
BRKT ROPE GUIDE BLK. (StarLite GT)
5222687067
$89,24 Unit Price incl. VAT
40
GUIDE RECOIL
5431385
$19,94 Unit Price incl. VAT
41
FOOTREST ASM RH BLK. Substituted by 1012545
1011935
Not Available
42
MT CONSOLE RH
1011952067
$435,74 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
