1
Engine displacement
500
2
Year
2009
3
Trim
SPORTSMAN TOURING 500 EFI QUAD - A09DN50EA
4
Parts Catalog

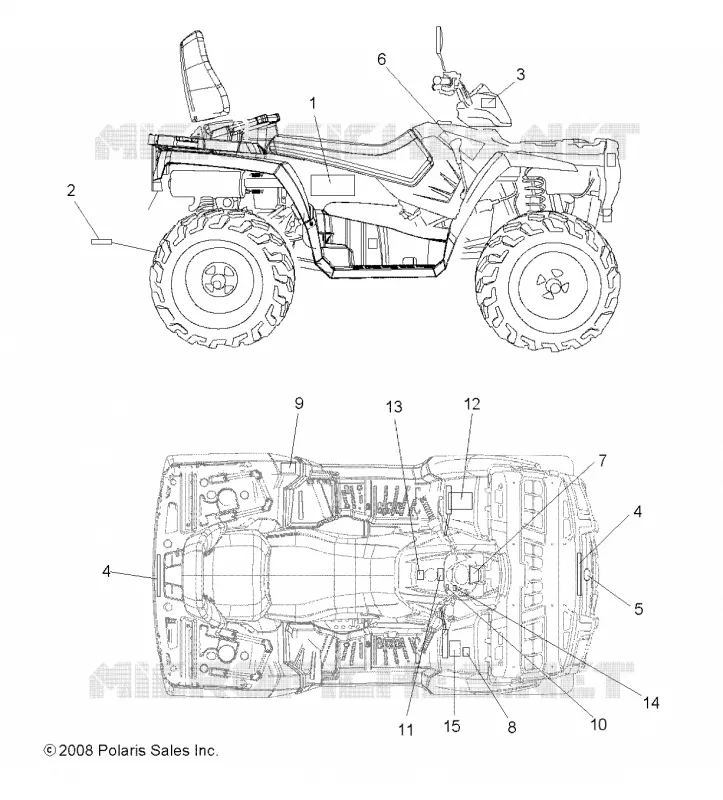

DECALS
5
Parts Diagram
Parts Catalog
CLUTCH COVER
by
FRONT BUMPER AND MOUNTING
DECALS
1
1
2
3
4
4
5
6
6
7
8
9
10
11
12
13
14
15
1
Decal Rear Cab #AWD# LH [AA]
7174912
Not Available
1
Decal Rear Cab #AWD# RH [AA]
7174913
Not Available
2
DECAL-HITCH 1225 LBS.LEVELGRND
7174159
$27,29 Unit Price incl. VAT
3
Decal Pod #EFI#
7174263
Not Available
4
DECAL WARNING FRONT AND REAR RACK [ON REAR RACK ONLY]
7172572
Not Available
5
LOGO-POLARIS STAR
7078465
$23,09 Unit Price incl. VAT
6
Decal Tank Side #500 TOURING# LH
7175023
Not Available
6
Decal Tank Side #500 TOURING# RH
7175024
Not Available
7
DECAL LENS COVER
7174394
Not Available
8
Decal Warning Discretionary Drum Shift
7175108
Not Available
9
Decal Tire Pressure/Load Quad
7175164
Not Available
10
DECAL IGNITION LIGHTING
7174569
$16,79 Unit Price incl. VAT
11
Decal Warning Override 4x4 Switch
7175106
Not Available
12
Decal Warning General CPSC
7174362
Not Available
13
Decal Warning Age 16
7173027
Not Available
14
Decal Turf Switch
7175340
Not Available
15
Decal Warning Discretionary
7174361
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
