Engine displacement
500
2
Year
2009
3
Trim
SPORTSMAN TOURING 500 EFI QUAD - A09DN50EA
4
Parts Catalog
SWITCHES AND SENSORS AND ECM
5

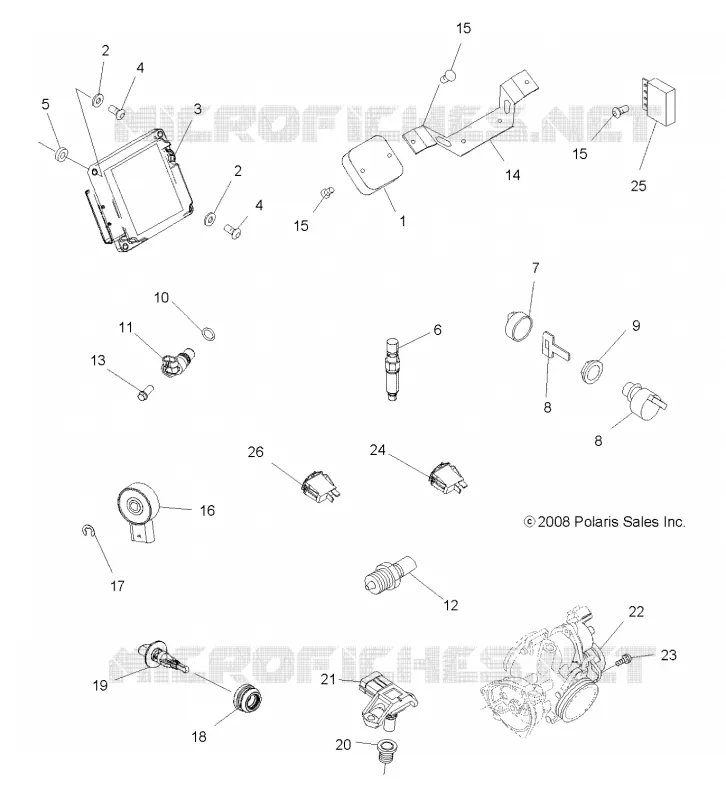

Parts Diagram
Parts Catalog
HEADLIGHTS
by
TAIL LIGHTS
SWITCHES AND SENSORS AND ECM
1
2
2
3
4
4
5
6
7
8
8
8
8
8
8
9
10
11
12
13
14
15
15
15
16
17
18
19
20
21
22
23
24
25
26
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
Regulator
4012384
$535,49 Unit Price incl. VAT
2
BURR RIVET(50) Substituted by 7555904
7555746
7555904
$1,56 Unit Price incl. VAT
3
ECM Service
4012443
Not Available
4
SCR-10-24X1 PN TRX TFS STL-Y
7518552
$7,34 Unit Price incl. VAT
5
WASHER NYLON
7555932
$4,19 Unit Price incl. VAT
6
Switch Pressure Brake
4011478
Not Available
7
Cover-Key
5433534
5465307
$26,24 Unit Price incl. VAT
8
Switch Key
4011142
4081557
$204,74 Unit Price incl. VAT
8
Blank Key Series 2200 2300 2700 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.
4010321
4083604
$27,29 Unit Price incl. VAT
8
BLANK KEY SERIES 2000 2100 6700 6800 [NOTE:YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY]
4010278
4083605
$27,29 Unit Price incl. VAT
9
NUT-IGNITION SWITCH HOBBS
5433733
$41,99 Unit Price incl. VAT
10
O-RING
3234302
$13,64 Unit Price incl. VAT
11
SENSOR-SPEED TRANS
4013908
4082135
$204,74 Unit Price incl. VAT
12
Sensor Water Temp
3089892
$194,24 Unit Price incl. VAT
13
SCREW TAPPING HEX WASHER HD 1/4-20 X 0.75
3234247
$10,49 Unit Price incl. VAT
14
Bracket Voltage Regulator
5248725
Not Available
15
SCR-#10-24X1/2PH/TORX-TRIRD-Y
7512024
$9,44 Unit Price incl. VAT
16
SWITCH ROTARY 6-PIN ITW [GEAR POSITION]
3233835
3236115
$225,74 Unit Price incl. VAT
17
RING RETAINING BASIC EXTERNAL
3233834
$19,94 Unit Price incl. VAT
18
GROMMET AIR TEMPERATURE SENSOR
5436346
$9,44 Unit Price incl. VAT
19
Sensor Air Temperature
2410687
$283,49 Unit Price incl. VAT
20
Grommet
3089902
Not Available
21
Sensor Air Pressure
3089895
$314,99 Unit Price incl. VAT
22
Sensor Throttle Position
3140173
3131705
$367,49 Unit Price incl. VAT
23
Screw
3131628
$9,44 Unit Price incl. VAT
24
Switch Turf On/Off
4011966
Not Available
25
Module Flash/Turn
4011553
Not Available
26
Switch Hazard
4011761
$120,74 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
