Engine displacement
500
2
Year
2009
3
Trim
SPORTSMAN TOURING 500 EFI QUAD - A09DN50EA
4
Parts Catalog
ENGINE, AIR INTAKE SYSTEM
5

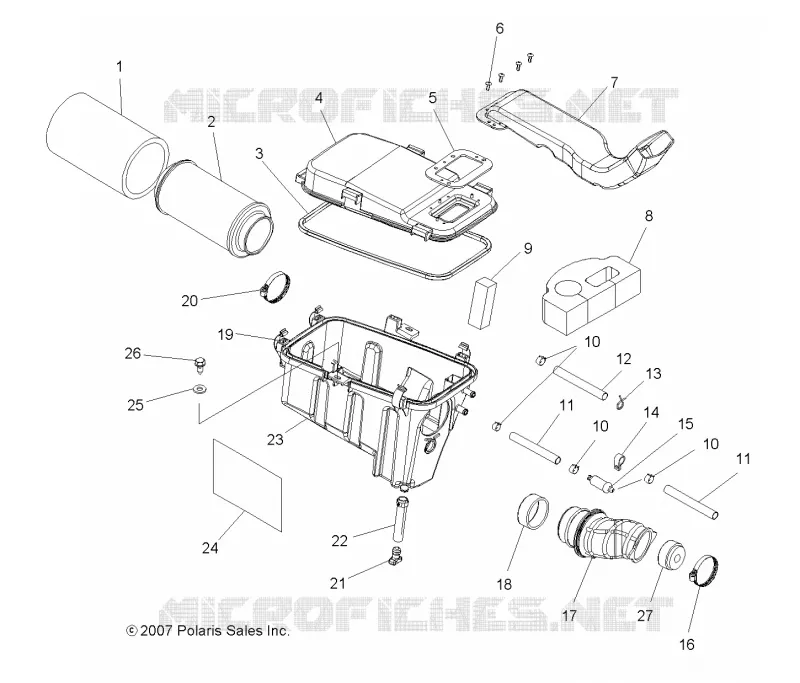

Parts Diagram
Parts Catalog
ENGINE, AIR INJECTION SYSTEM
by
COOLING SYSTEM
ENGINE, AIR INTAKE SYSTEM
1
2
3
4
5
6
7
8
9
10
10
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
1
Filter Pre-Cleaner Sleeve
5811633
$19,20 Unit Price incl. VAT
2
FILTER AIR INTAKE
7080595
7083107
$51,23 Unit Price incl. VAT
3
Seal Air Box Cover
5812829
5813949
$52,49 Unit Price incl. VAT
4
Cover Air Box
5436278
Not Available
5
Gasket Intake
5412748
Not Available
6
SCREW(10)
7517317
$6,29 Unit Price incl. VAT
7
Duct Air Intake
5436957
$99,74 Unit Price incl. VAT
8
Seal Foam Large Intake
5812773
$52,49 Unit Price incl. VAT
9
Filter Crankcase
5812910
$8,39 Unit Price incl. VAT
10
Clamp Hose Spring .69 Inch
7080699
$3,14 Unit Price incl. VAT
11
LINE BREATHER 3/8 ID.
8450073600
$136,49 Unit Price incl. VAT
12
Hose Breather
5413104
Not Available
13
Clamp Hose Spring .75 Inch
7080694
$10,49 Unit Price incl. VAT
14
P-Clamp
7080913
$10,49 Unit Price incl. VAT
15
FILTER BREATHER IN LINE
2530029
$11,54 Unit Price incl. VAT
16
CLAMP BAND NARROW
7080413
$5,76 Unit Price incl. VAT
17
Boot Carburetor
5412847
$68,24 Unit Price incl. VAT
18
SLEEVE CARBURETOR INNER
5433847
$27,29 Unit Price incl. VAT
19
Clip Air Box
5249292
Not Available
20
CLAMP-BAND NARROW 60-80MM
7080707
$5,76 Unit Price incl. VAT
21
Plug Trap
5435299
$12,59 Unit Price incl. VAT
22
FUEL LINE
8450059150
$115,49 Unit Price incl. VAT
23
Box Air
5436151
$262,49 Unit Price incl. VAT
24
Foil Airbox
5812771
Not Available
25
WASHER-FL .281X.750X.062-Y
7555859
$2,09 Unit Price incl. VAT
26
SCR-1/4-20X1 HX/WH/TAP/R GR5-Y
7515179
$4,19 Unit Price incl. VAT
27
Restrictor
5135645
$48,92 Unit Price incl. VAT
