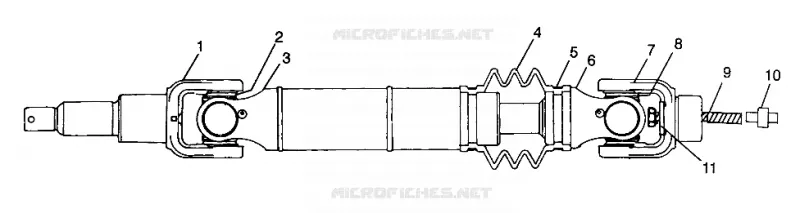

REAR DRIVE SHAFT SPORTSMAN 500 W97CH50A (4939993999B004)
5
Parts Diagram
Parts Catalog
CV JOINT
by
PROP SHAFT SPORTSMAN 500 W97CH50A (4939993999B005)
REAR DRIVE SHAFT SPORTSMAN 500 W97CH50A (4939993999B004)
-
DRIVESHAFT ASM REAR (Incl. 1-11)
1380110
Not Available
1
YOKE WHEEL END
3260137
Not Available
2
JOINT ASM.CARDAN 1200 SERIES
1590257
$89,24 Unit Price incl. VAT
3
YOKE TUBE & SLEEVE Substituted by 3260134
5131806
Not Available
4
BOOT SHAFT R.HALF
5411161
$83,99 Unit Price incl. VAT
5
CLAMP (BOOT)
5241755
$52,49 Unit Price incl. VAT
6
YOKE SHAFT
3260138
Not Available
7
YOKE TRANSMISSION
3260135
Not Available
8
JOINT ASM CARDAN 1800 SERIES
1590256
$104,99 Unit Price incl. VAT
9
BOLT Substituted by 7515491
7515433
$3,14 Unit Price incl. VAT
10
SPACER HALFSHAFT ATTACH.
5020890
Not Available
11
Washer .105
7555832
$4,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
