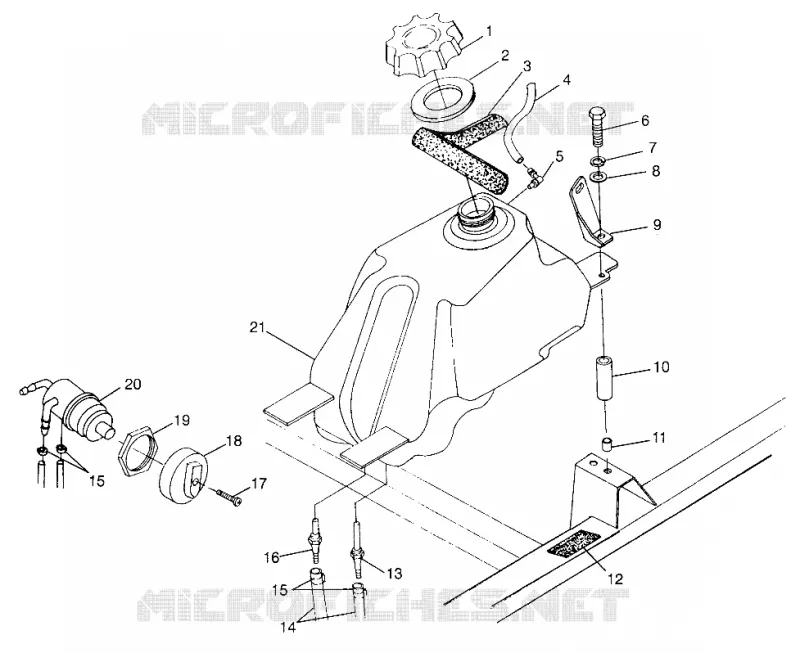

FUEL TANK SPORTSMAN 500 W97CH50A (4939993999B001)
5
Parts Diagram
Parts Catalog
EXHAUST SYSTEM SPORTSMAN 500 W97CH50A (4939993999A014)
by
FRONT WHEEL SPORTSMAN 500 W97CH50A (4939993999B007)
FUEL TANK SPORTSMAN 500 W97CH50A (4939993999B001)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
2
3
4
5
6
7
8
9
9
9
9
10
11
12
13
14
15
15
16
17
18
19
20
21
1
CAP GAS (BLACK)
5430725
$47,24 Unit Price incl. VAT
2
GASKET-GAS CAP
5810144
$10,49 Unit Price incl. VAT
3
Seal Foam
5811310
Not Available
4
HOSE-POLY CLEAR 3/16 OD 1/8 ID
8360009600
$83,99 Unit Price incl. VAT
5
Vent Tank
5431053
$47,24 Unit Price incl. VAT
6
SCREW(10)
7515349
Not Available
7
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
8
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
9
BRKT RH.R.FUELCOVER BLK.
5222155067
Not Available
9
BRKT LH.R.FUELCOVER BLK.
5222154067
Not Available
10
Spacer
5332457
Not Available
11
Insert-1/4-20
7542143
$10,49 Unit Price incl. VAT
12
PAD
5810317
Not Available
13
Fitting Fuel Outlet Main
7052150
$52,49 Unit Price incl. VAT
14
FUEL LINE-1/4 ID (SVC) 600 CM [BULK]
8450040600
$136,49 Unit Price incl. VAT
15
HOSE CLAMP RED
7080003
$2,09 Unit Price incl. VAT
16
Fitting Fuel Outlet Reserve
7052149
$41,99 Unit Price incl. VAT
17
SCREW S.S.(10)
7516302
$6,29 Unit Price incl. VAT
18
KNOB FUEL VALVE (If built before 1/14/00)
5432559
$20,99 Unit Price incl. VAT
19
NUT FUELVALVE ATV (If built before 1/14/00)
5432733
Not Available
20
VALVE 3-WAY (If built before 1/14/00)
7052161
$83,99 Unit Price incl. VAT
21
FUELTANK ASM. Substituted by 2520144
2511265
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
