FUEL PUMP SPORTSMAN 500 W97CH50A (4939993999E002)
5
Parts Diagram
Parts Catalog
MAGNETO
by
TOOL KIT SPORTSMAN 500 W97CH50A (4939993999E003)

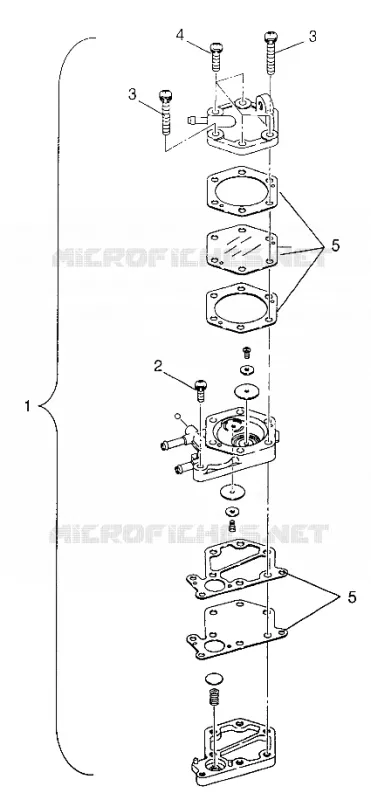

FUEL PUMP SPORTSMAN 500 W97CH50A (4939993999E002)
1
2
3
4
5
1
2
3
3
4
5
1
Asm. Fuel Pump [Incl. 1-4]
3085275
2520227
$146,99 Unit Price incl. VAT
2
Screw and Washer
3084999
Not Available
3
SCREW&WASHER
3085356
Not Available
4
SCREW&WASHER (10)
3084591
Not Available
5
Diaphragm Gasket Set
3084998
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
